| Med noise blanker system
MAIN FEATURES :
-
Legal for use in the UK
and most of Europe
-
ESP squelch - advanced
squelch allows you to hear people, even when below the squelch level
-
Large LCD display can
be switched to show channel number or frequency
-
PA facility - great for
recovery situations and attracting help
-
New "Surface Mount
Technology" board design for incredible ruggedness
-
Multi-standard channels
- legal to use in UK and Europe
-
Display can show either
channel number or frequency
-

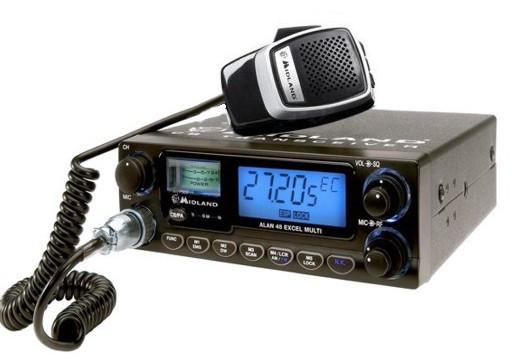

Midland's top of the
range CB
TECHNICAL SPECIFICATIONS
GENERAL
Channels
......................................................................
(see the Frequency band chart)
Frequency Range
......................................................................
26.565 - 27.99125 MHz
Duty cycle (% on 1 hour)..............................................
TX 5% - RX 5% - Stand-by 90%
Frequency Control
.....................................................................................................PLL
Operating Temperature
Range......................................................................
-10°/+55° C
DC input voltage
......................................................................................12.6
Vdc ±10%
Size......................................................................................
180(L) x 55(H) x 155(D)mm
Weight........................................................................................................................1Kg
RECEIVER
Receiving
system.......................................................Dual
conversion superheterodyne
Intermediate frequency
................................................. I°IF:10.695 MHz II°IF:455
KHz
Sensitivity....................................................................0.5μV
for 20dB SINAD in AM/FM
Audio output power @10% THD............................................................
2.0 W @ 8 Ohm
Audio distortion............................................................................Less
than 8% @ 1KHz
Image rejection.........................................................................................................65dB
Adjacent channel rejection.......................................................................................65dB
Signal/Noise
ratio.....................................................................................................45dB
Current drain at
stand/by..........................................................................
12.6V: 250mA
TRANSMITTER
Output
power.......................................................................................................4W
max
Modulation.......................................................................................
FM:1.8KHz ± 0.2khz
..............................................................................................................
AM: 85% to 95%
Frequency response.............................................................................400
Hz@2,5 KHz
Output impedance.....................................................................
RF 50 Ohm unbalanced
Signal/Noise
Ratio..........................................................................................40
dB MIN
Current drain..................................................................................
max 12.6V: 2500 mA
|
