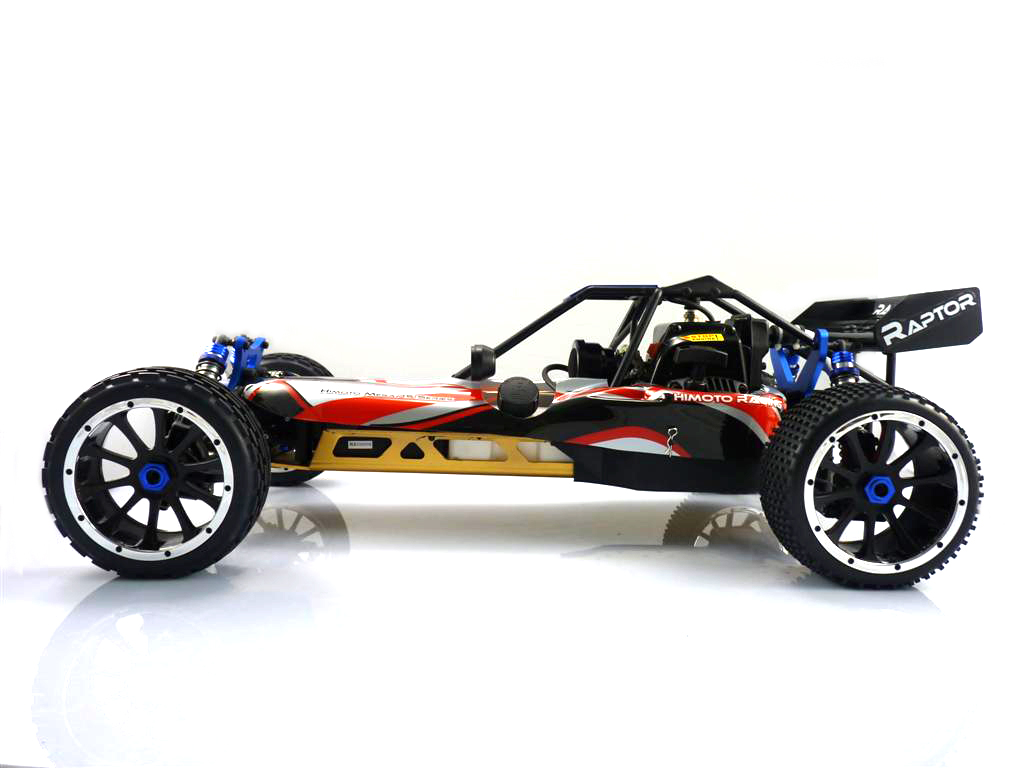

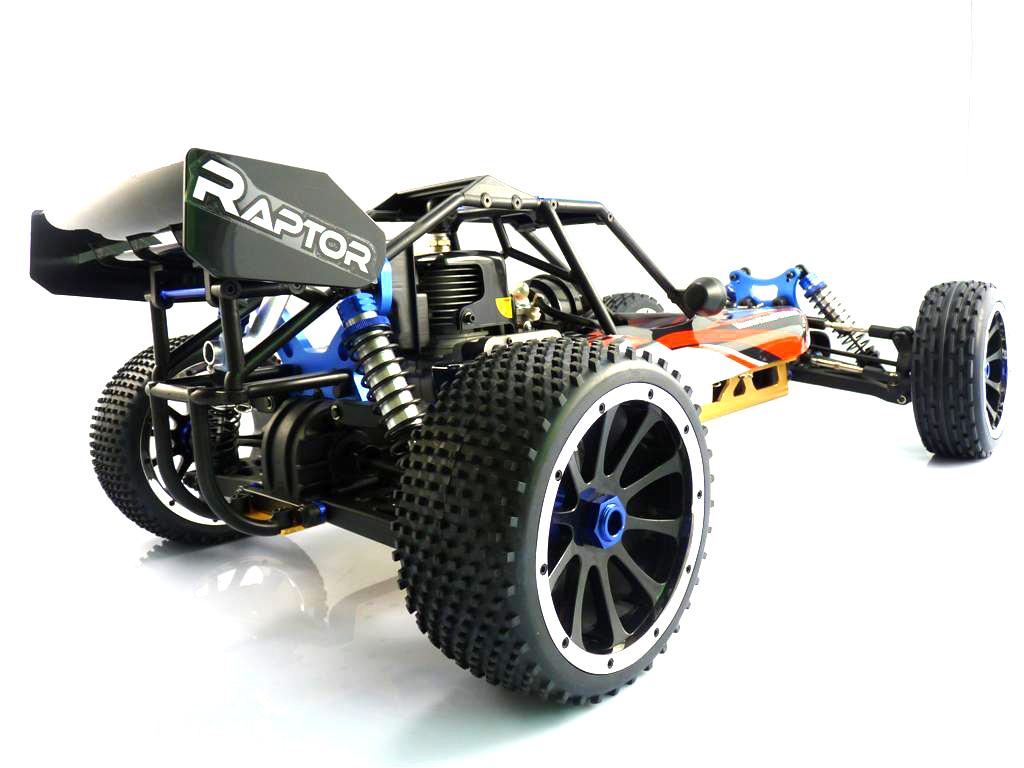

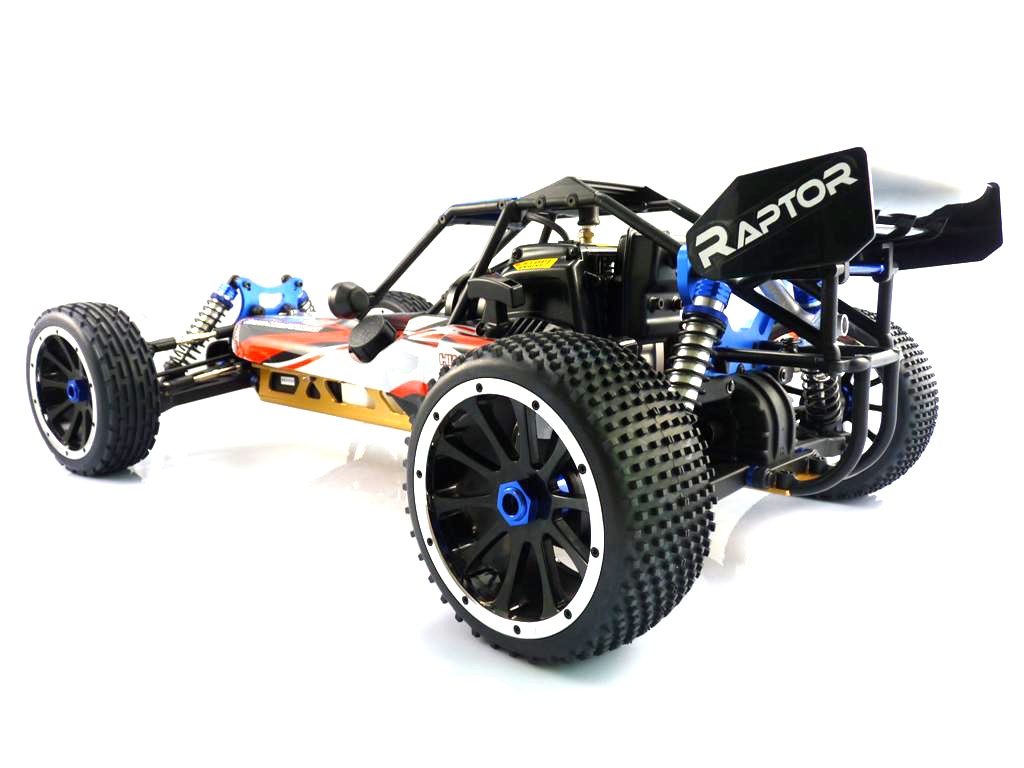

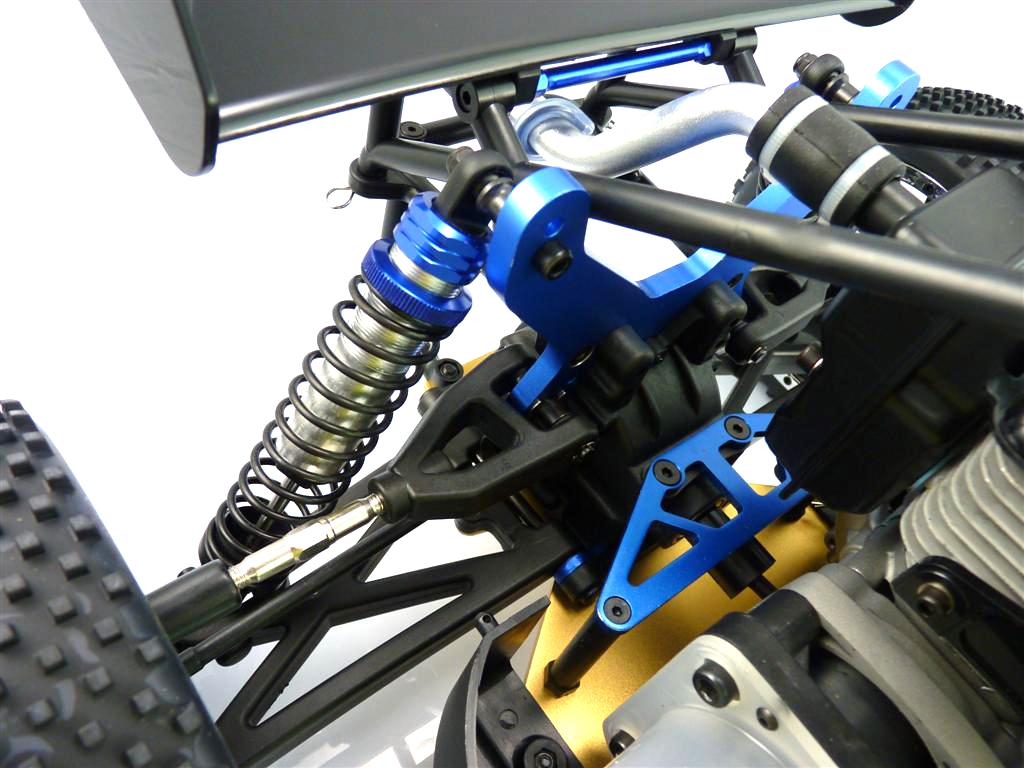

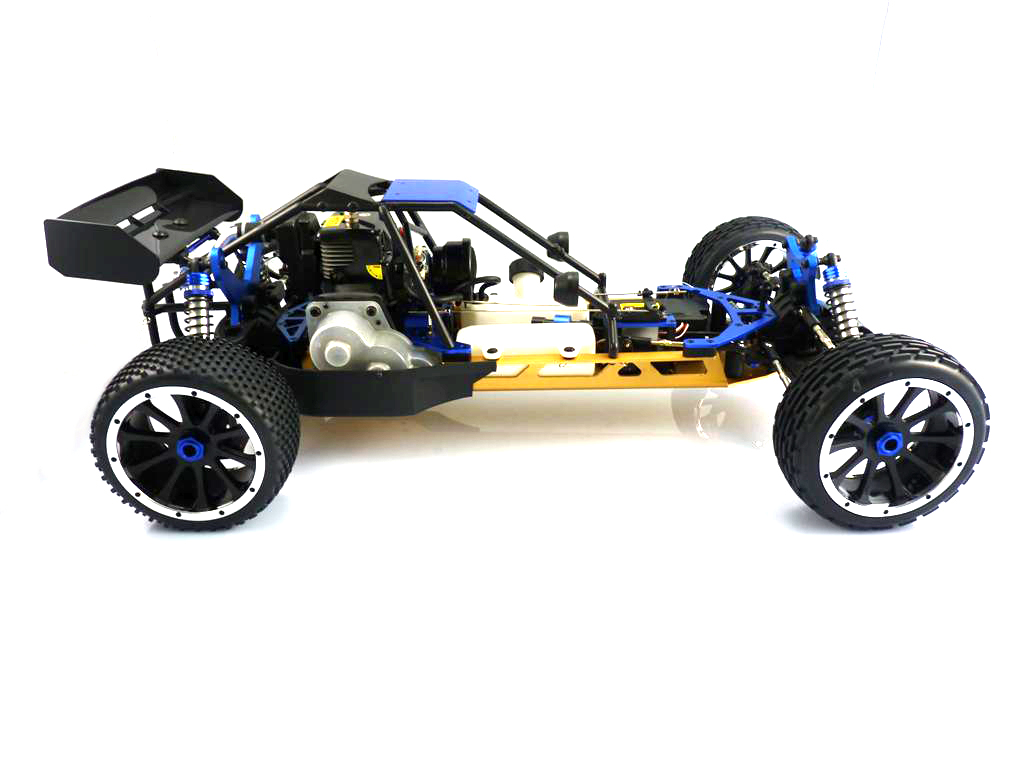

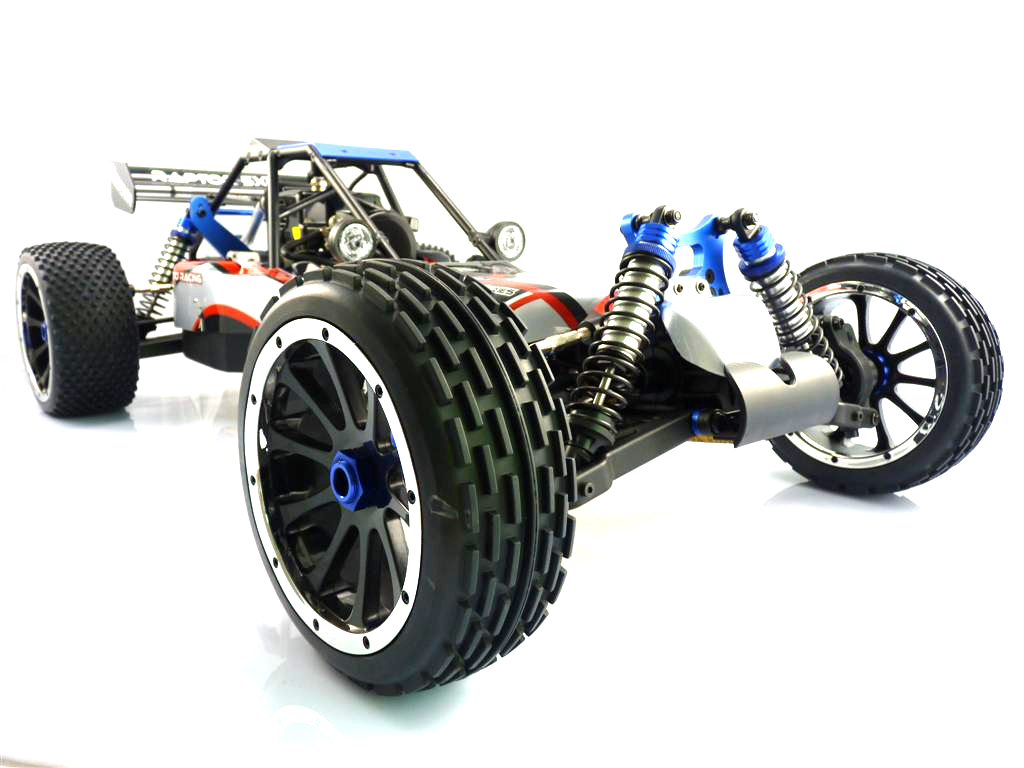

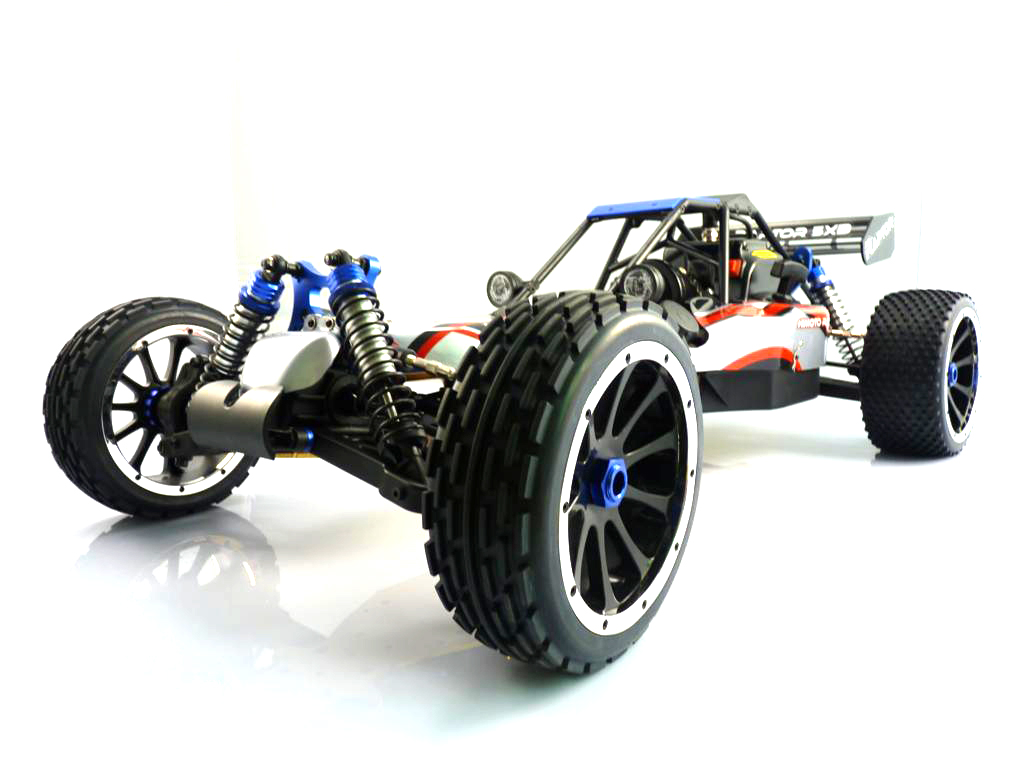

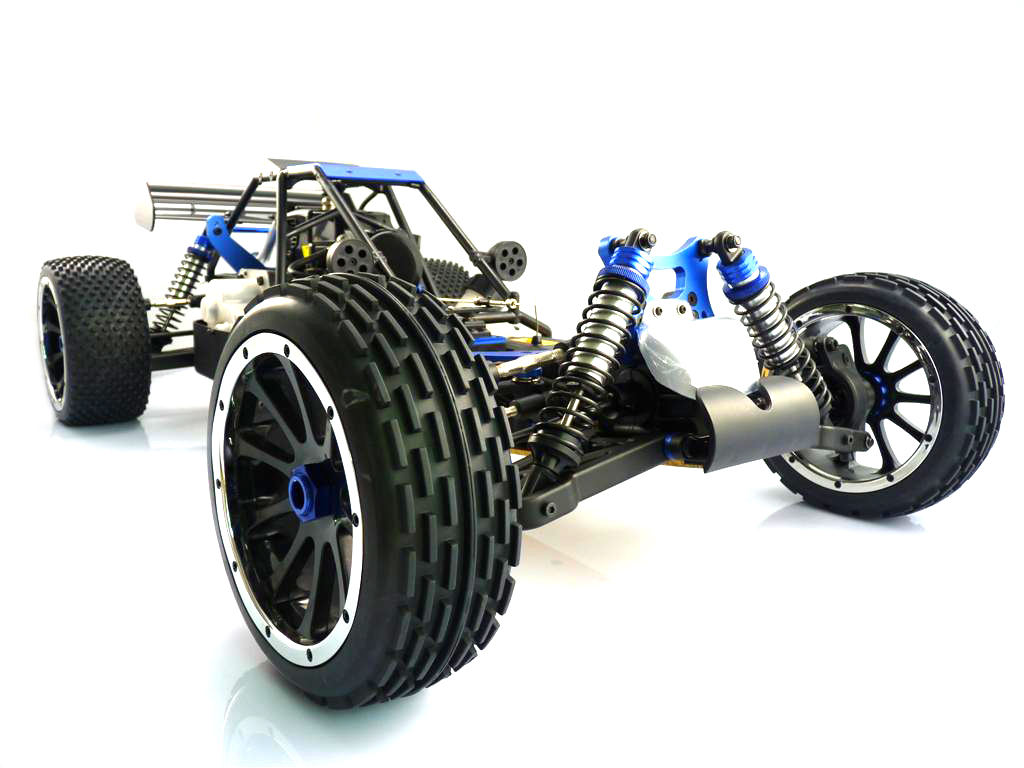

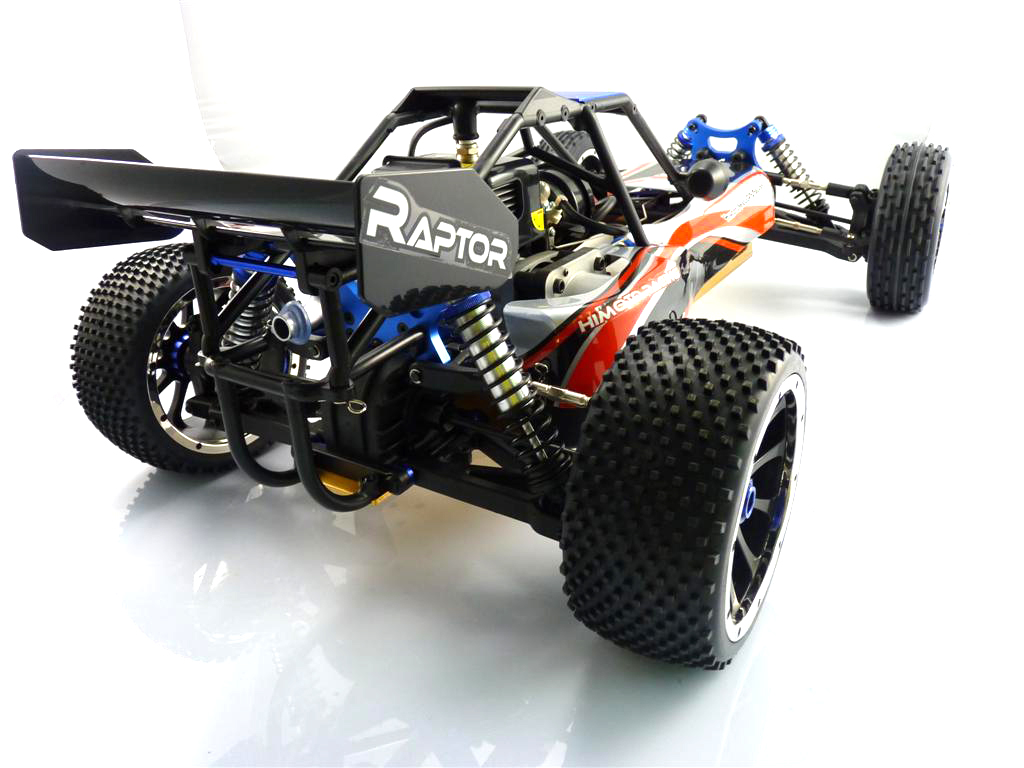

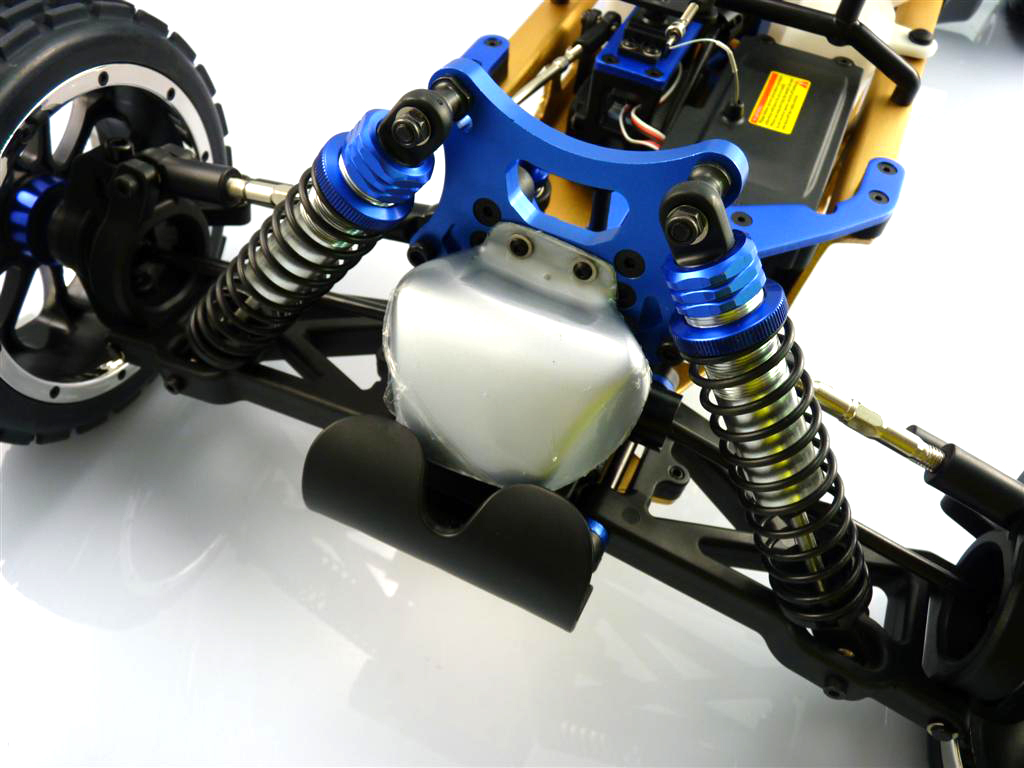

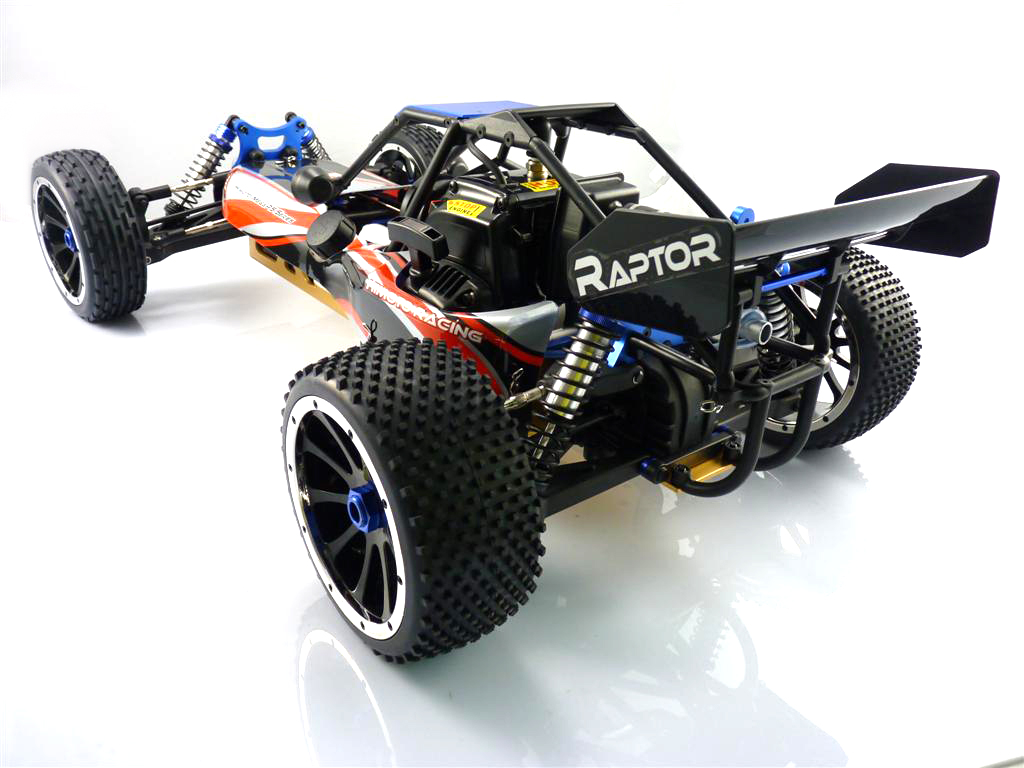

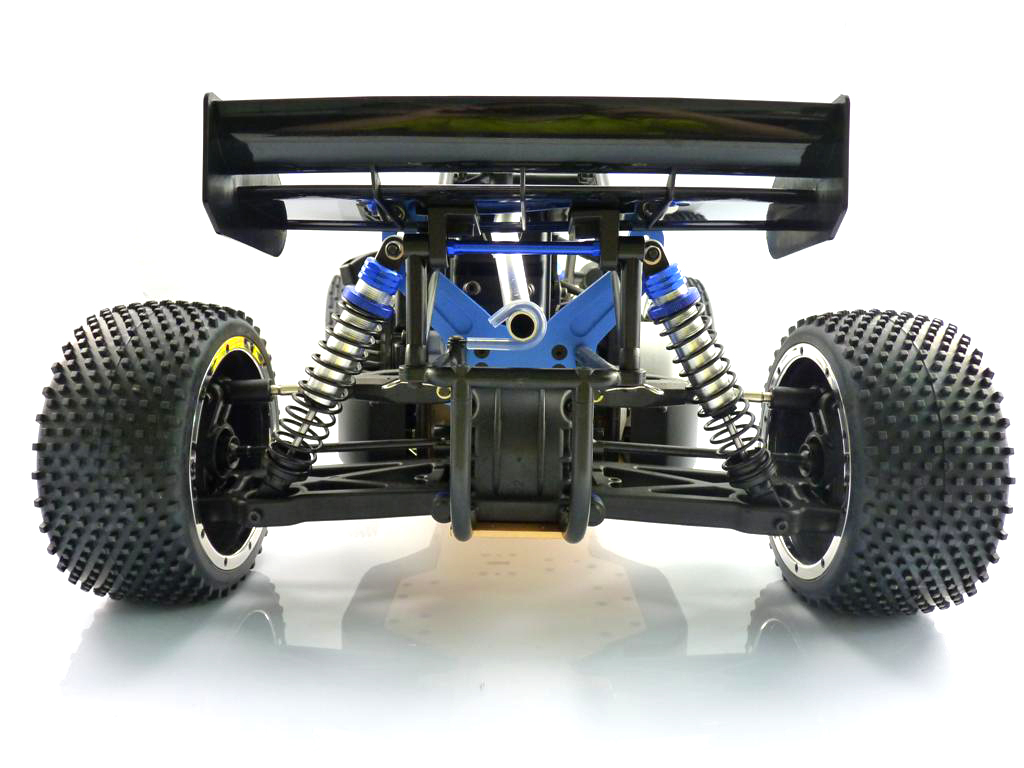

Himoto RAPTOR 5XB HI4054

C Communication
Folehaven 12 2500 Valby Tlf. 36170333
Du er altid velkommen til at maile eller ringe med spørgsmål eller for et godt råd
Vi sender varer overalt fra dag til dag.

Item No : Himoto HI4054
Item Name : RAPTOR 5XB
OFF Road Buggy Petrol Engine
Product : Car Scale : 1:5 RTR 4WD
Fuel: Bensin

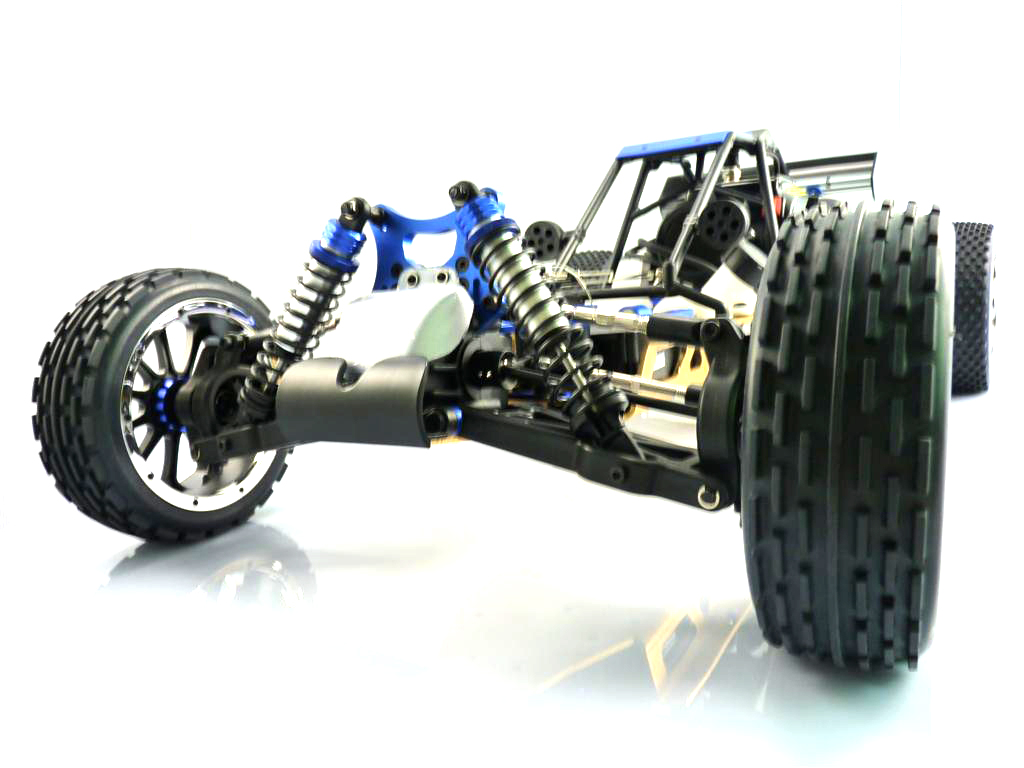

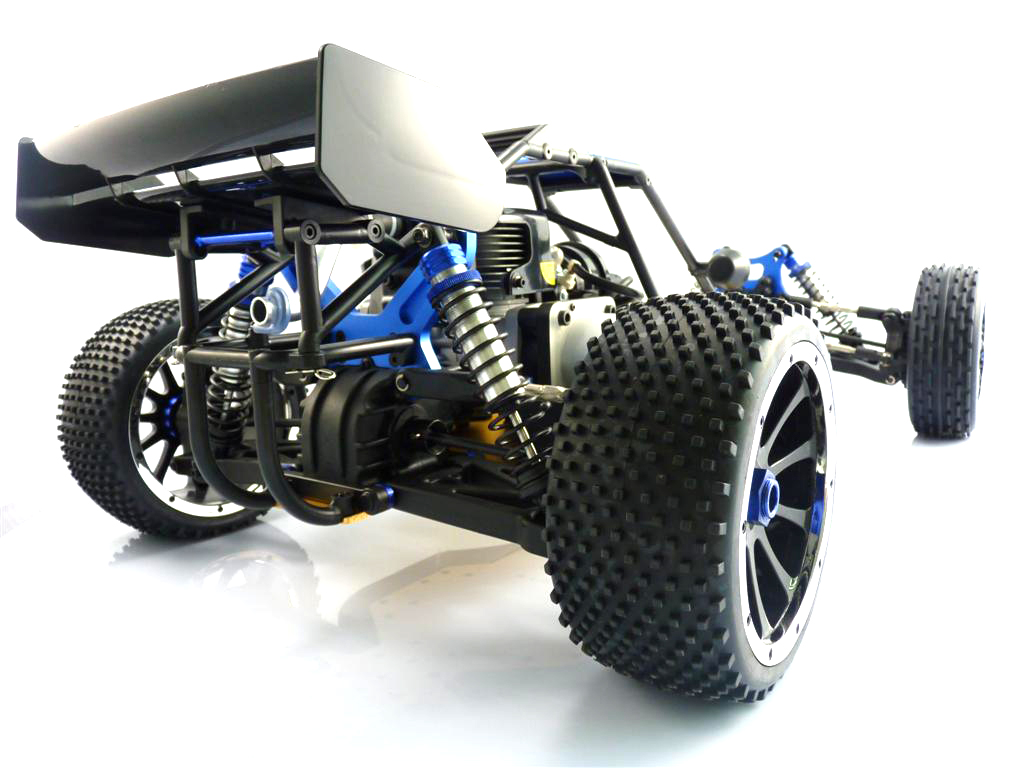

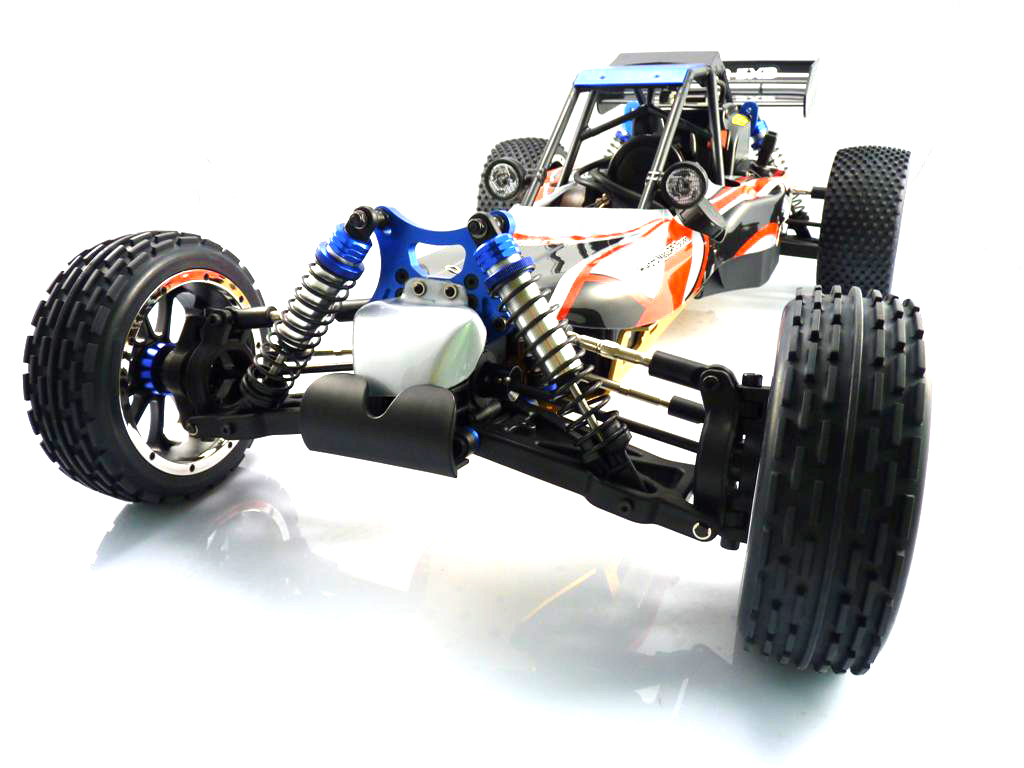

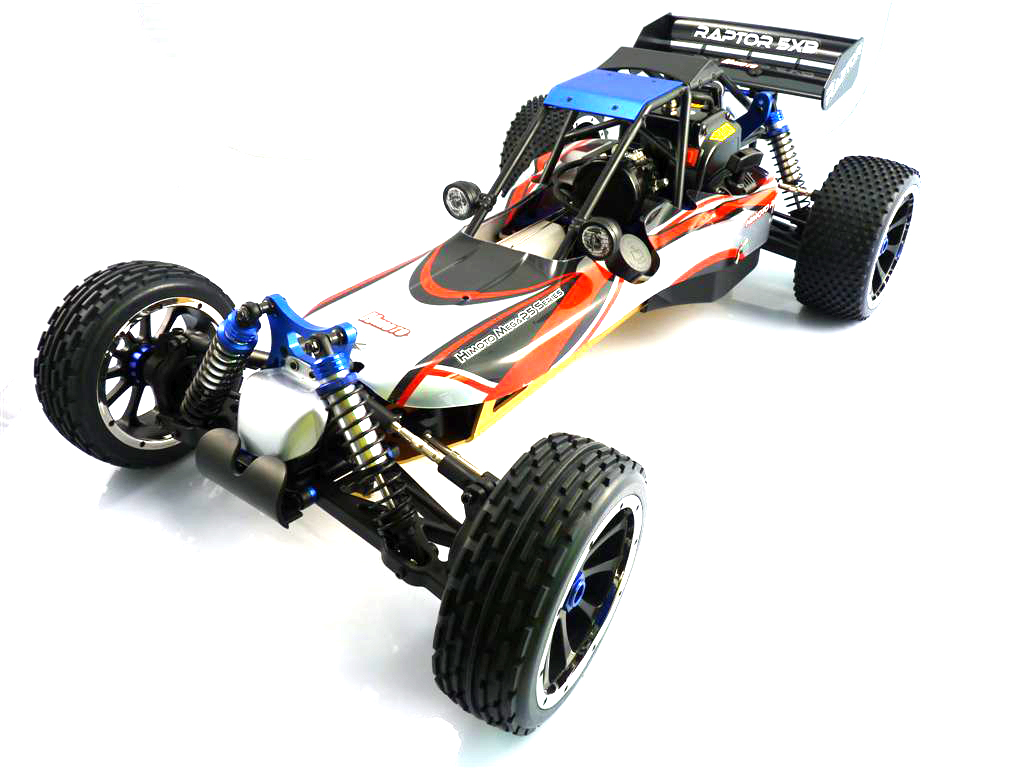

Himoto RAPTOR 5XB HI4054

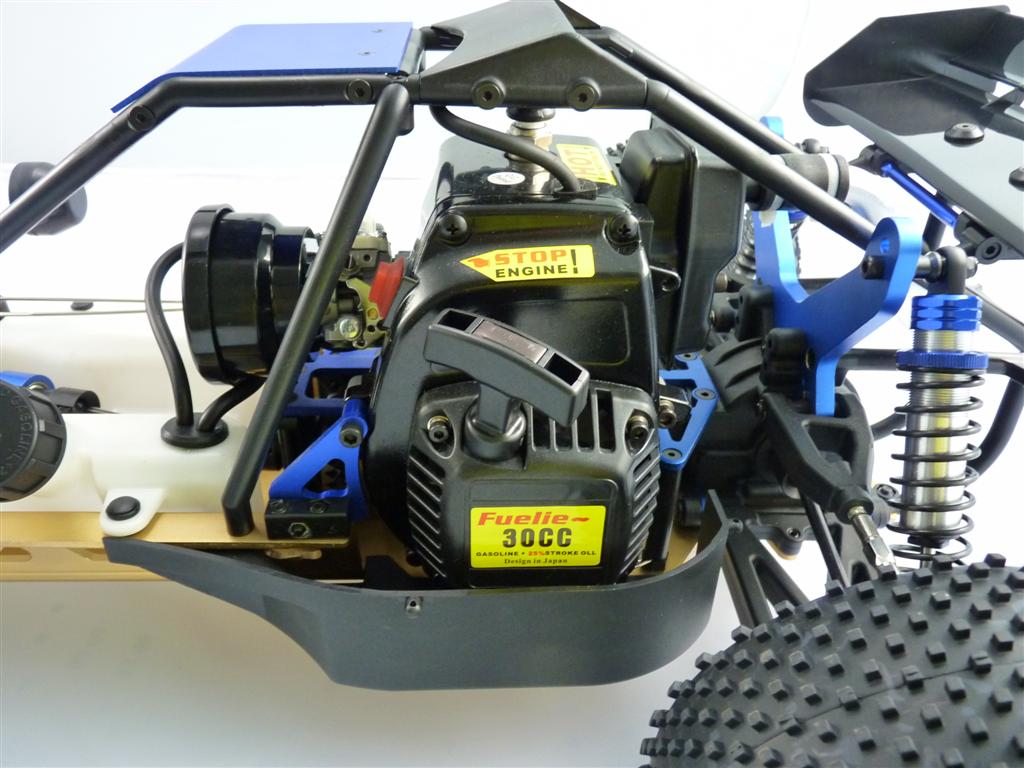

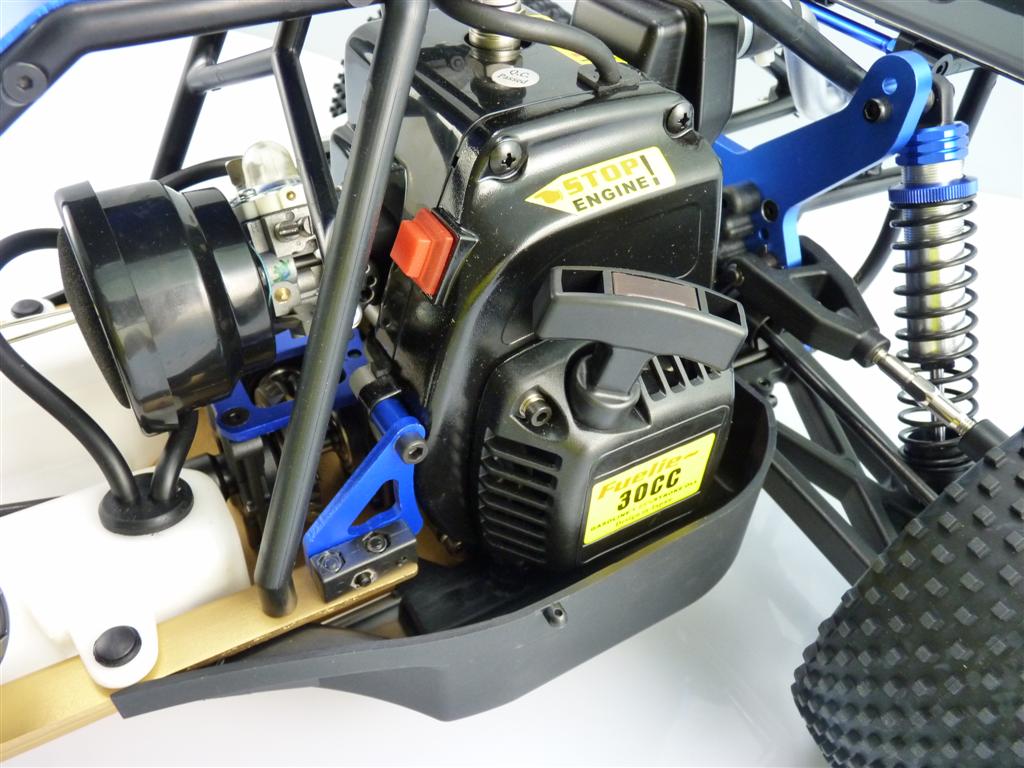

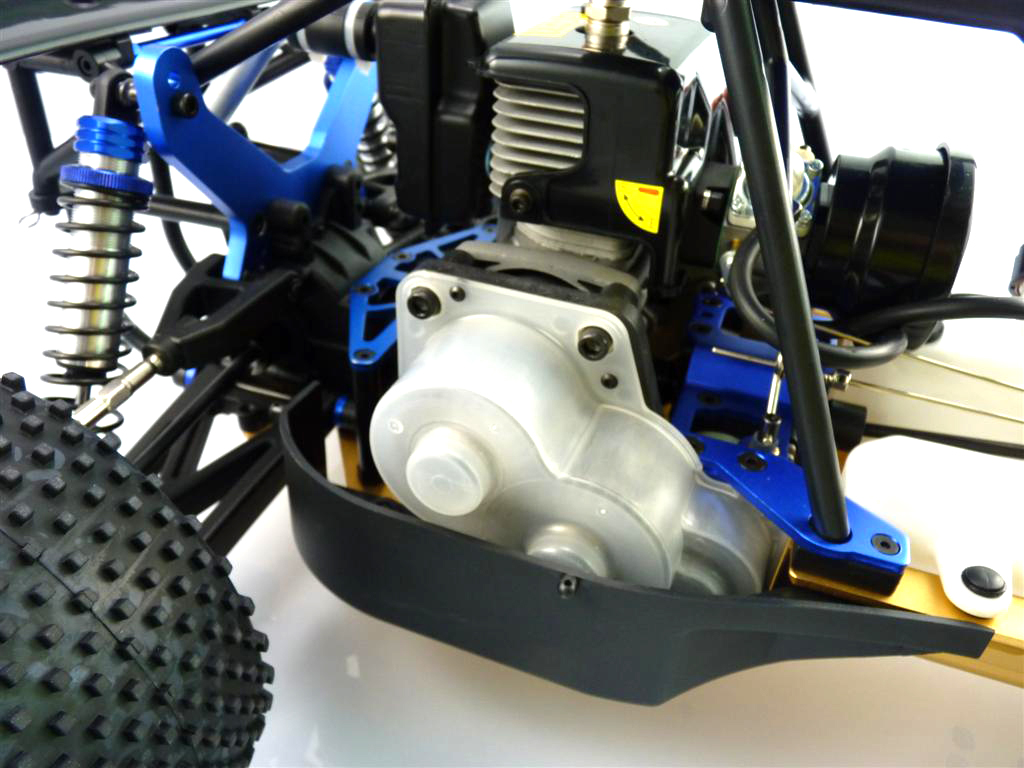

1. Engine:30CC
2. Wheel Diameter: 212mm
3. Length: 825mm
4. Width: 480mm
5. Height:270mm
6. Fuel Tank Capacity: 700CC
7. Wheelbase: 610mm (F/R)
8. Drive way: upright drive
9. Chassis: 4mm Aluminum Ground Clearance: 72mm
10. Net Weight: 12.7KG, Gross Weight: 16.7KG
11. Drive System: four wheel suspension drivesystem
12. Diffirential System: CNC process metal gear
13. Brake System: double brake disc
14. Gear Ratio: 9.6:1
15. Receiver battery/charger: Ni-MH battery
16. Body: anti-explode, high resistance
17. Camber Angel:0-8
18. R/C Control System: 2,4Ghz Transmitter
19. Out of range protection
20. Steering Servo: 27KG-cm Throttle Servo: 9KG-cm
Download Manual Tilbage til shoppen

　

Spare parts and upgrade parts

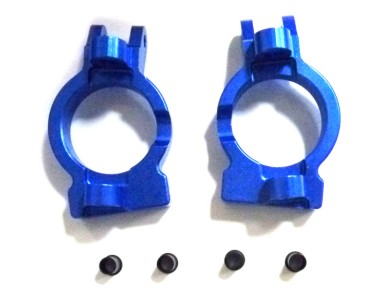

Code : 050005

L/R Caster Mount 2P

Code : 050007

Rear Hub Carrier 2P

Code : 050008

(050008N) Front Brace 1P

Code : 050009

Universal Drive Joint 2P

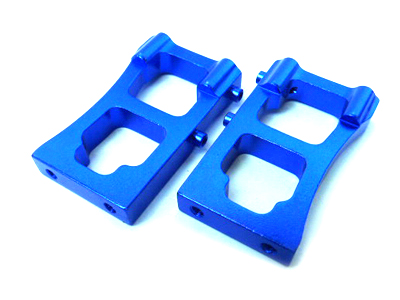

Code : 050011

L/R Servo Mount 2P

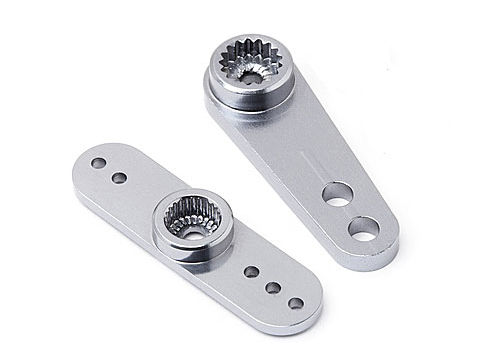

Code : 050023

Alum Servo Horn 2P

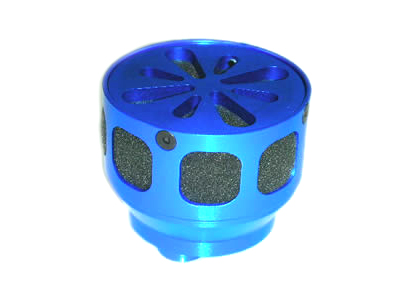

Code : 050028

Air Filter 1P

Code : 050029

Shock Absorber Protective Head 4P

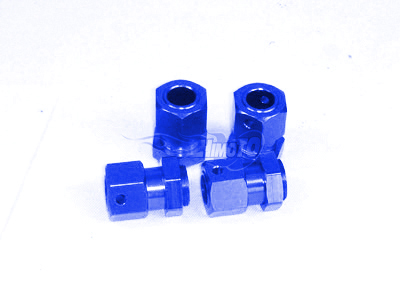

Code : 050030

Wheel Hex Mount w/Nut 4P

Code : 050031

Wheel Hex 1P

Code : 050033

Engine Recoil Starter 1P

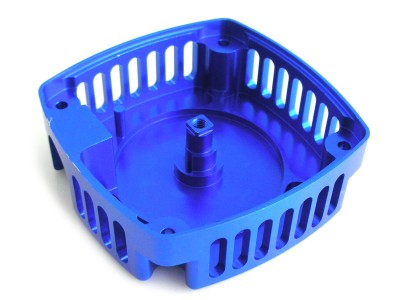

Code : 050034

Engine Cover 1P

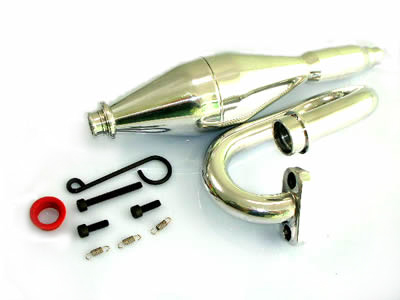

Code : 050039

Alum Polished Exhaust Pipe 1P

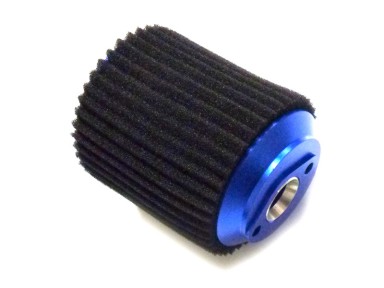

Code : 050040

Air Filter 1P

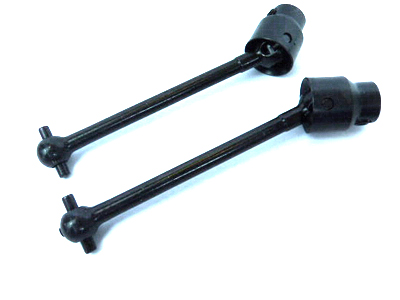

Code : 050061

125Mm Center Dogbone 2P

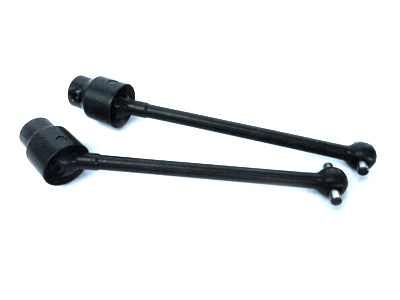

Code : 050062

172Mm Center Dogbone 2P

Code : 050101

Outerwear Shock Absorber Covers 4P

Code : 051011

Front Upper Susp Arm 2P

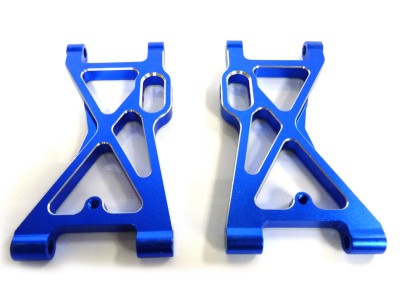

Code : 054001

Front Lower Susp Arm 2P

Code : 054002

Rear Lower Susp Arm 2P

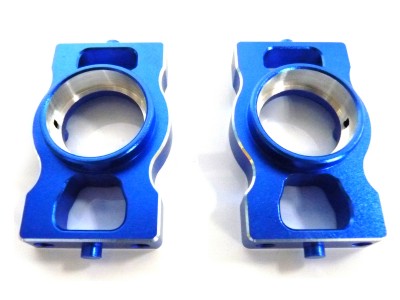

Code : 054003

Center Diff Mount 2P

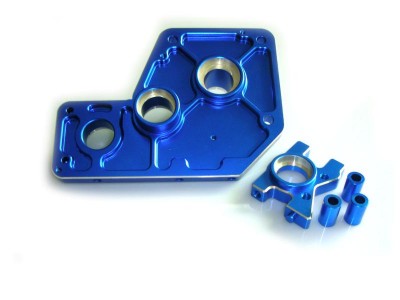

Code : 054004

Gear Mount 1P

Code : 054005

Alum Front Upper Susp Arm 2P

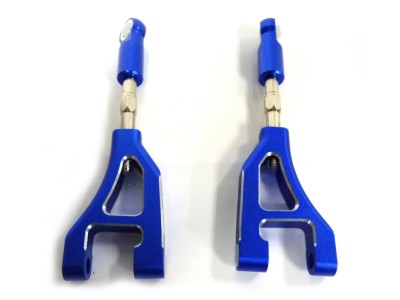

Code : 054006

Rear Upper Susp Arm 2P

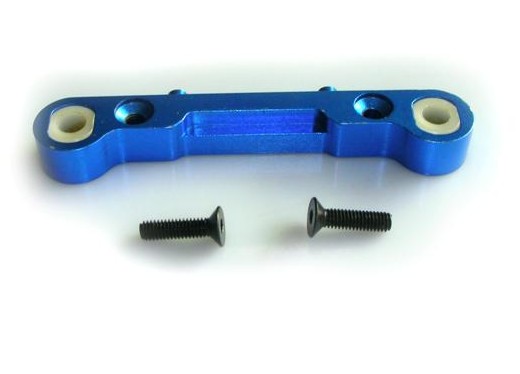

Code : 054007

F/R Susp Arm Holder (Short)(Direct hole) 1SET

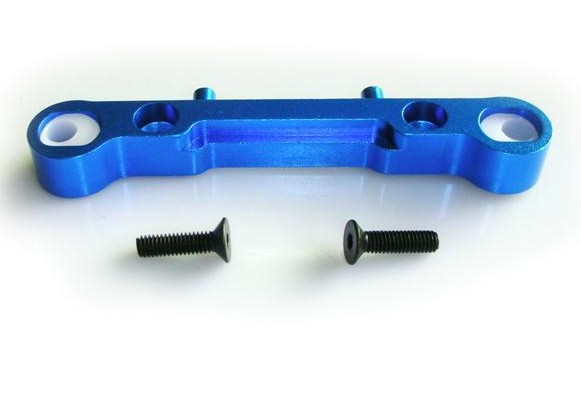

Code : 054008

Rear Susp Arm Holder (Long)(Inside bevel hole) 1SET

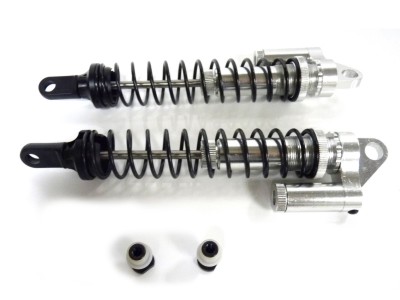

Code : 054009

Front Shock Absorber (Short) 2P

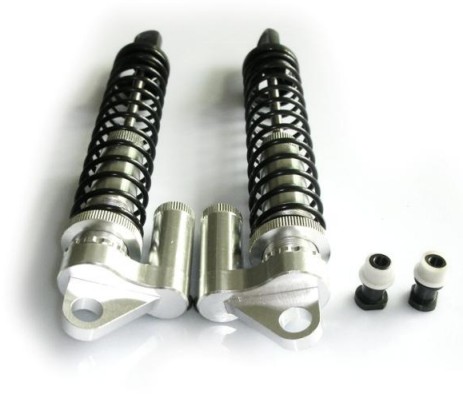

Code : 054010

Rear Shock Absorber (Long) 2P

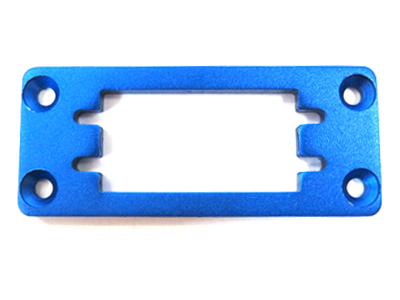

Code : 054012

Servo Top Mount 1P

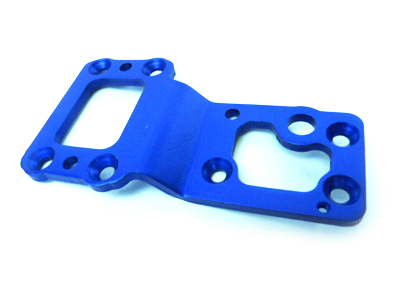

Code : 054013

Center Diff Tray 1P

Code : 054014

Rear Reinforcement Plate 1P

Code : 054015

Front Upper Top Plate 1P

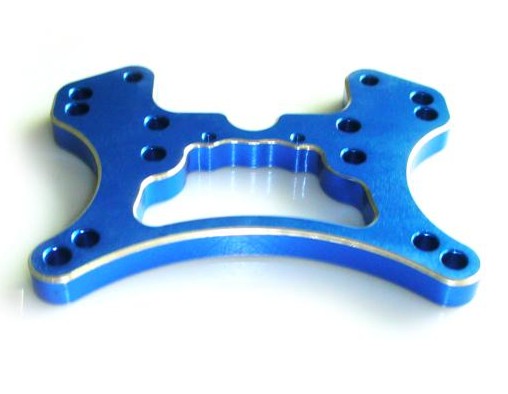

Code : 054016

Front Shock Tower 1P

Code : 054017

Rear Shock Tower 1P

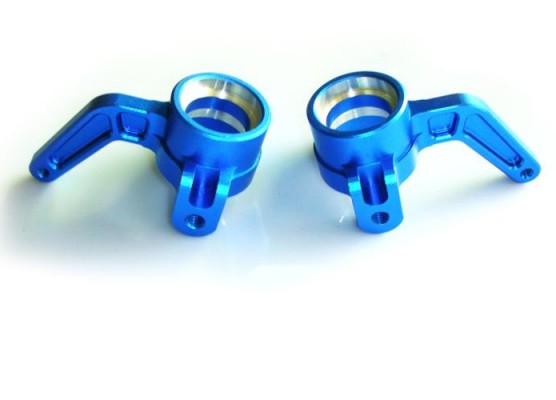

Code : 054018

Steering Mount 2P

Code : 054019

Servo Saver/Steering Complete 1P

Code : 054020

90Mm Center Dogbone 2P

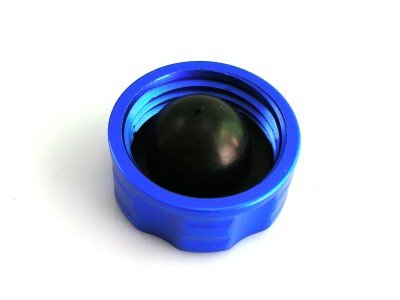

Code : 054021

Fuel Tank Cover 1P

Code : 054201

Alum Roll Cage 1P

Code : 07185

Optional Powder Steel Gear (31T) 1P

Code : 07186

Optional Powder Steel Gear (29T) 1P

Code : 07187

Optional Powder Steel Gear (26T) 1P

Code : 07189

Optional Powder Steel Gear (24T) 1P

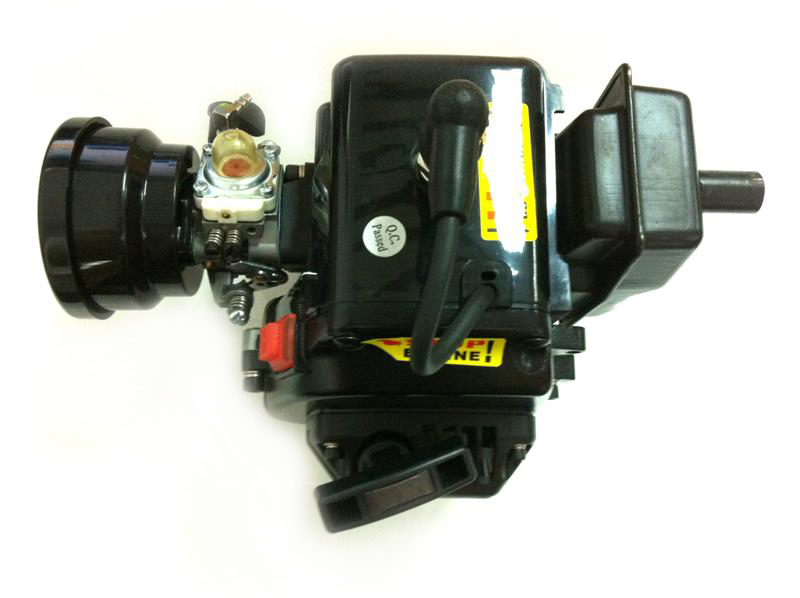

Code : 26001

26CC Engine Complete

Code : 28463

2.4G 3Channels Receiver With Failsafe -Blue

Code : 28CY

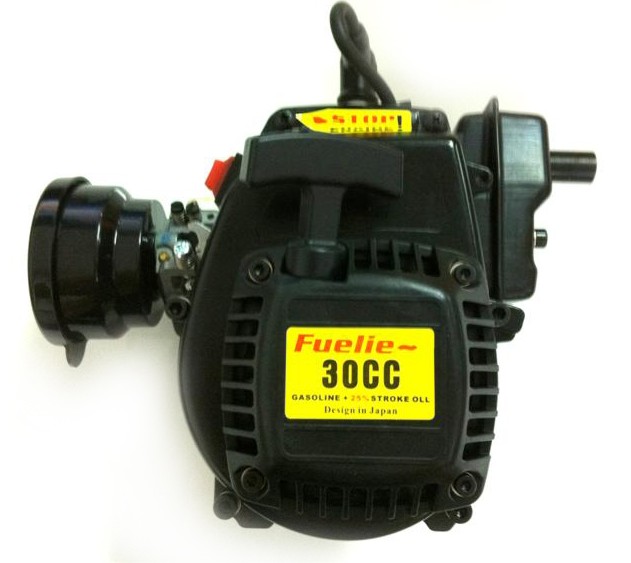

Code : 30001

30CC Engine Complete

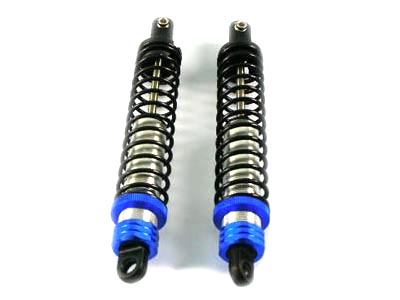

Code : 50003

(50003N) Rear Shock Absorber (Long) 2P

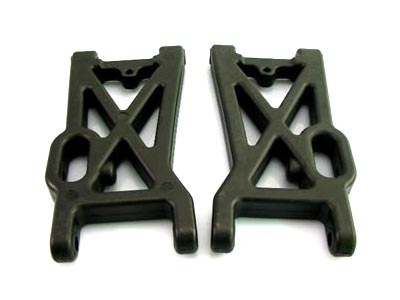

Code : 50004

(50004N) Front Lower Suspension Arm 2P

Code : 50005

(50005N) Rear Lower Suspension Arm 2P

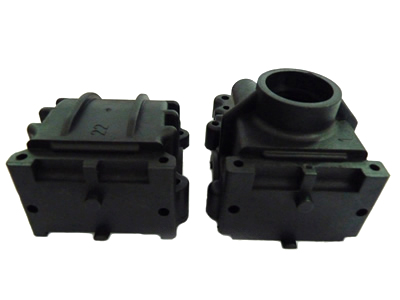

Code : 50007

(50007N) Gear Box 1P

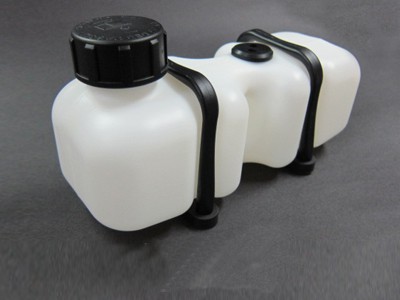

Code : 50009

(50009N) Fuel Tank w/Fuel Pipe (700CC) 1P

Code : 50010

Center Diff Mount 2P

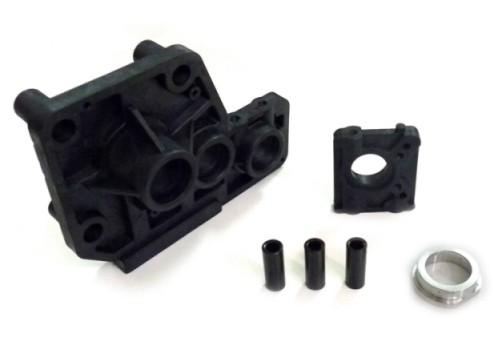

Code : 50011

Center Diff Mount Set

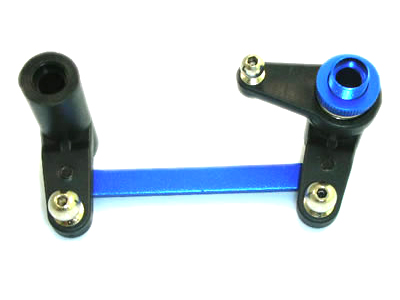

Code : 50012

Servo Saver/Steering Complete 1P

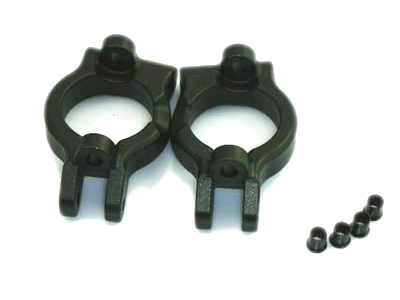

Code : 50013

L/R Steering Mount 2P

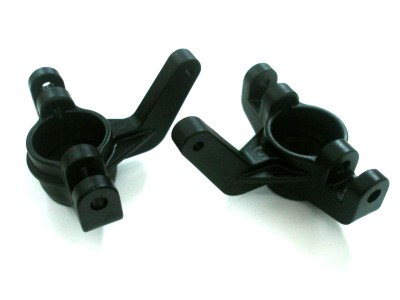

Code : 50014

Steering Mount 2P

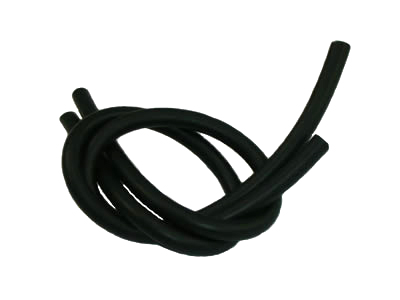

Code : 50018

Fuel Pipes 2P

Code : 50019

Servo Top Mount 1P

Code : 50020

Radio Tray 1P

Code : 50022

Deck Spacer+Countersunk Screw 1SET

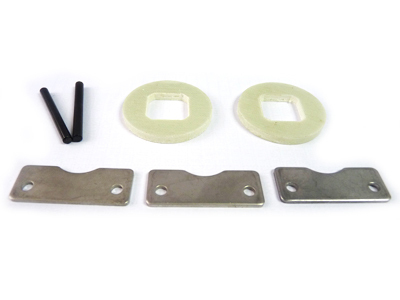

Code : 50023

Brake Discs+Pads+Pins 1SET

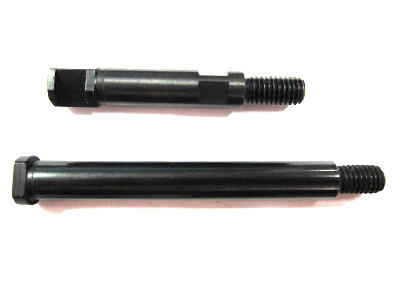

Code : 50024

Diff. First Way Shaft+Second Way Shaft 1SET

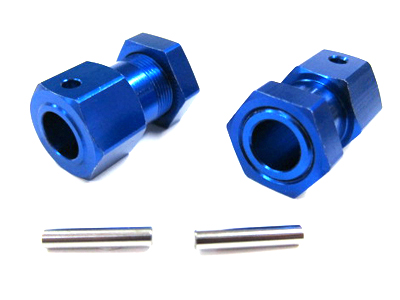

Code : 50025

Wheel Mount+Nut+Shaft (Rear) 1SET

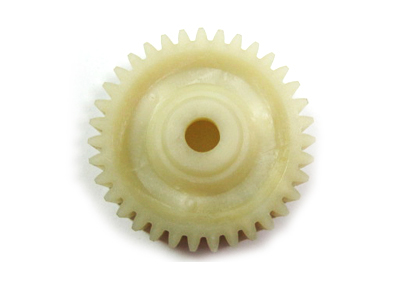

Code : 50027

Diff Gear (35T) 1P

Code : 50029

(50029N) Clutch Bell Bush 1P

Code : 50030

Center Dogbone Joint Cup 2P

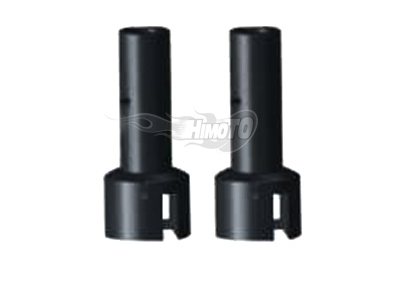

Code : 50032

F/R Wheel Axle 2P

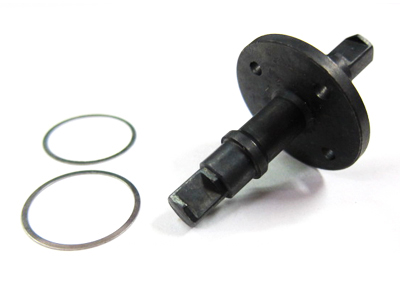

Code : 50033

Center Diff Shaft+Washers 1SET

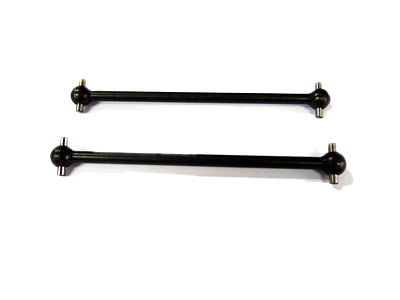

Code : 50034

133 mm Rear Dogbones

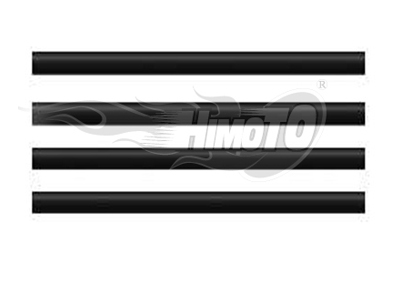

Code : 50038

6*94Mm F/R Lower Arm Pins 4P

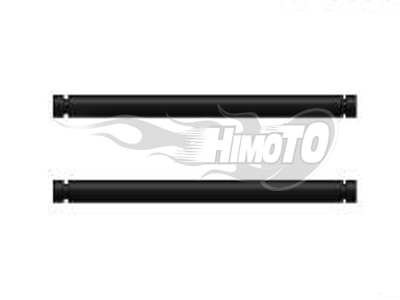

Code : 50039

6*61Mm Rear Lower Arm Pins 2P

Code : 50040

6*45Mm F/R Upper Arm Pins 4P

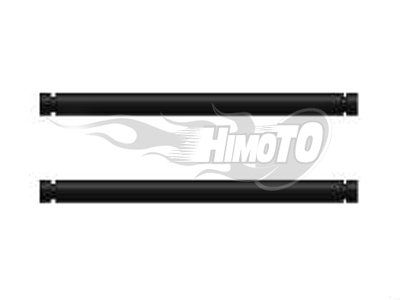

Code : 50041

6*65Mm Front Lower Arm Pins 2P

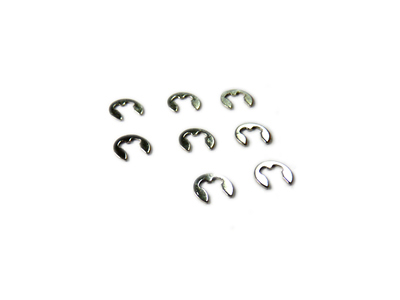

Code : 50043

F4.0 Susp Arm E-Clips 8P

Code : 50044

F8.0 Shock Tower Arm E-Clips 8P

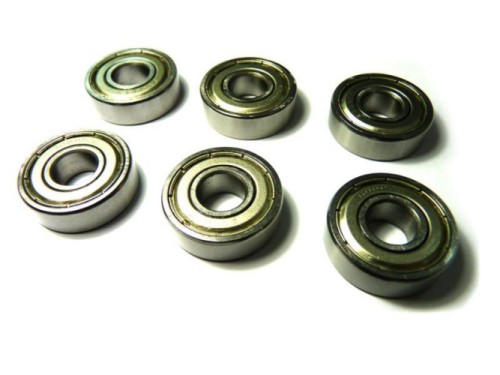

Code : 50045

Ball Bearing 10*26*8Mm 6P

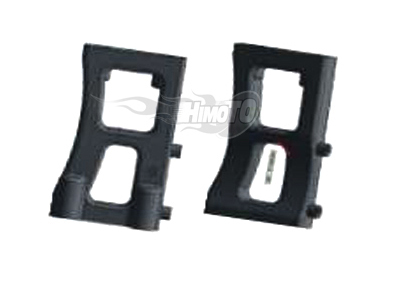

Code : 50046

L/R Servo Mount 2P

Code : 50048A

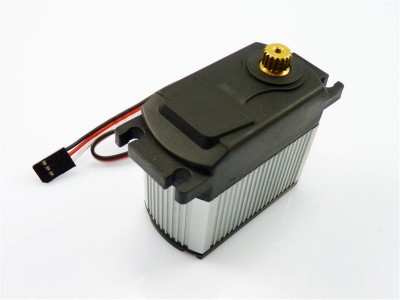

20Kg Servo 1P

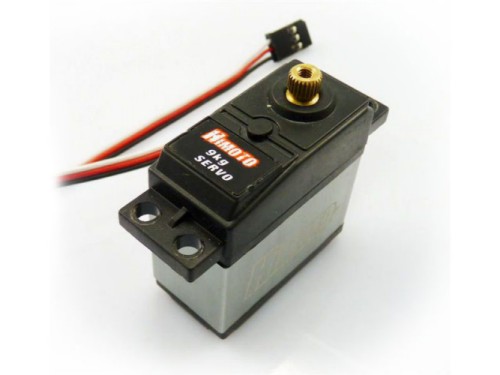

Code : 50048B

9KG Throttle Servo 1P

Code : 50049

Steering Linkage 2P

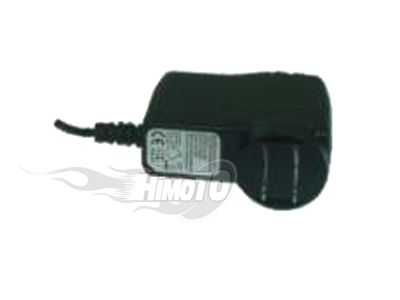

Code : 50050

Battery Charger (250mAH) 1P

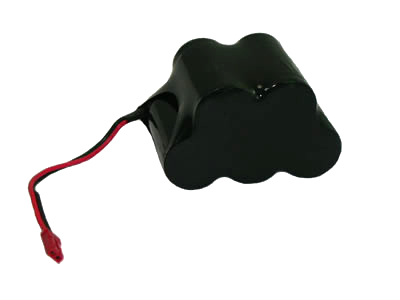

Code : 50051

Rechargeable Battery Pack (6V,2500mAH) 1P

Code : 50053

Glow Plug 1P

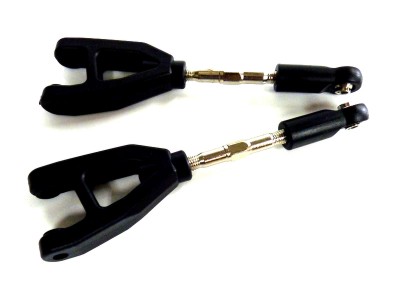

Code : 50055

Rear Upper Susp Arms 2P

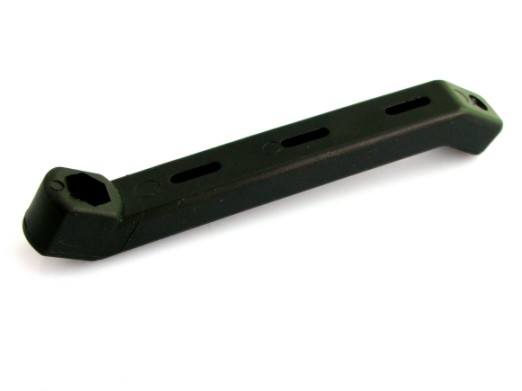

Code : 50058

(50058N) Front Brace 1P

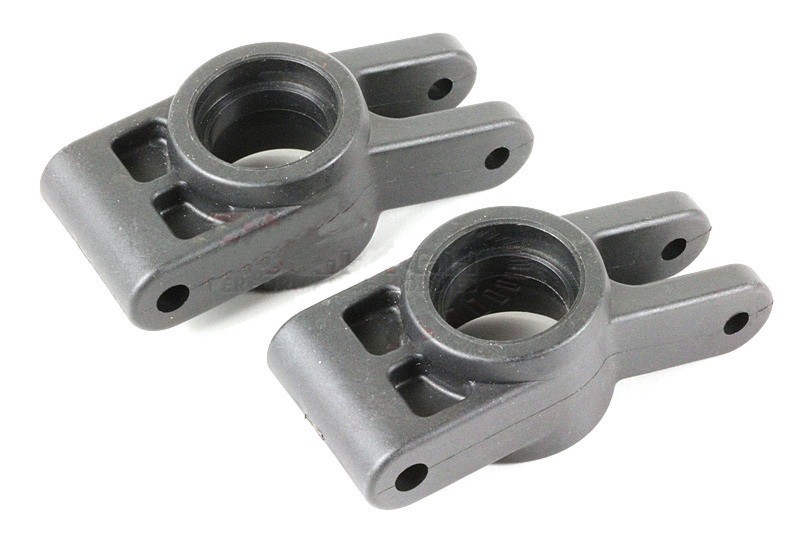

Code : 50059

Rear Hub Carrier 2P

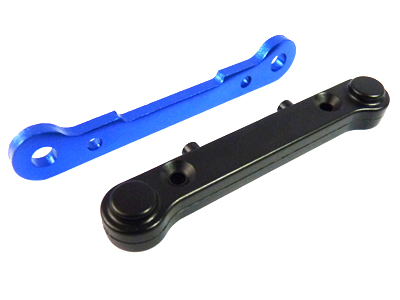

Code : 50062

Front Susp Arm Holder 1P

Code : 50063

Rear Susp Arm Holder 1P

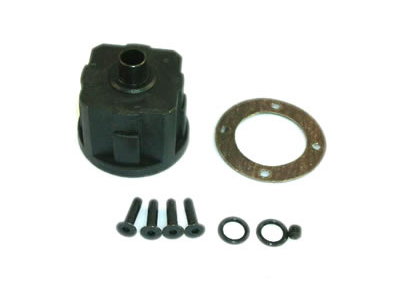

Code : 50064

F/R Diff Shell Set

Code : 50066

Diff Gear Cover 1P

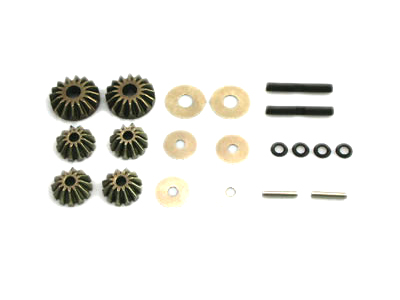

Code : 50067

(50067N) F/R Diff Gear Set

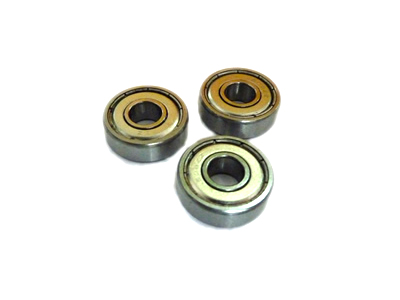

Code : 50068

Ball Bearing 10*22*7Mm 3P

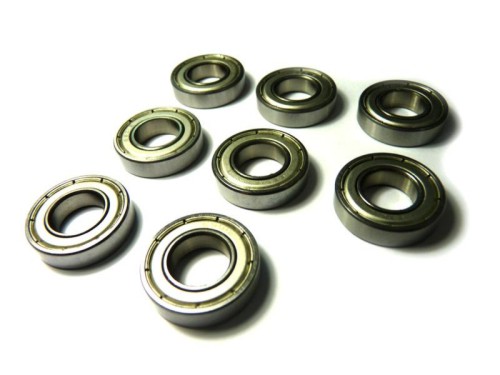

Code : 50069

Ball Bearing 12*24*6Mm 8P

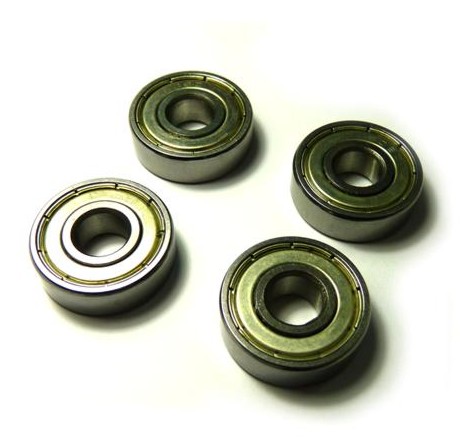

Code : 50070

Ball Bearing 8*22*7Mm 4P

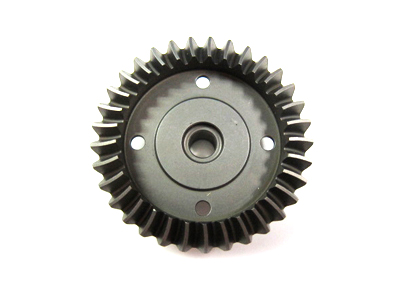

Code : 50071

F/R Crown Gear (33T)

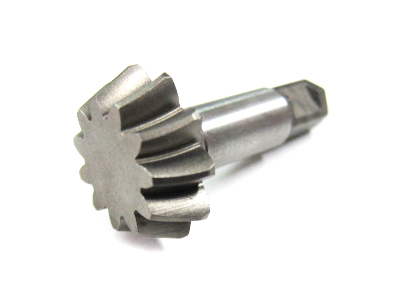

Code : 50072

F/R Drive Pinion (11T)

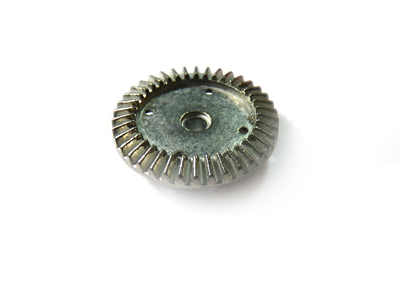

Code : 50073

Diff Crown Gear (30T) 1P

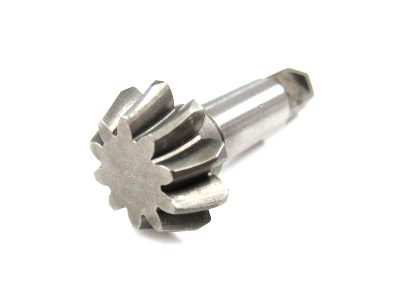

Code : 50074

Diff Drive Pinion (10T) 1P

Code : 50075

Center Diff Gear Set

Code : 50076

F8*15*1.5Mm First Way Gear Washer 4P

Code : 50077

F6*12*1.5Mm Second Way Gear Washers 6P

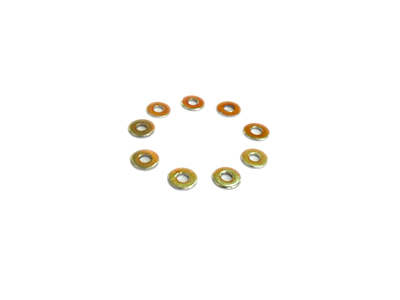

Code : 50078

F3*8*0.8Mm Servo Washers 9P

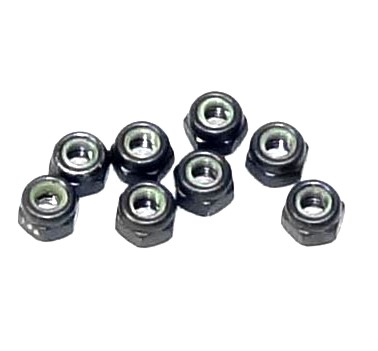

Code : 50079

M4 Nuts 8P

Code : 50080

M5 Nuts 9P

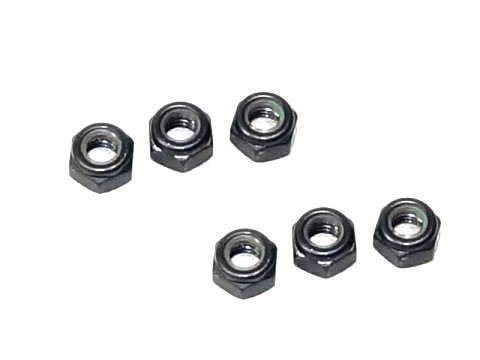

Code : 50081

M6 Nuts 6P

Code : 50083

3*10 Countersunk Mechanical Screws 4P

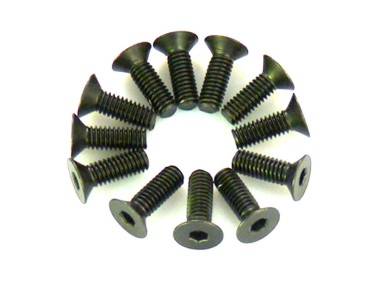

Code : 50084

4*12 Countersunk Mechanical Screws 12P

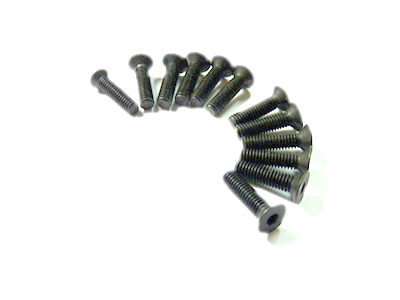

Code : 50085

4*16 Countersunk Mechanical Screws 12P

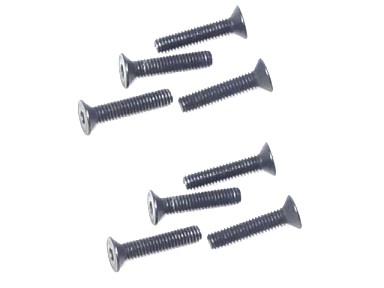

Code : 50086

4*20 Countersunk Mechanical Screws 8P

Code : 50087

4*25 Countersunk Mechanical Screws 8P

Code : 50088

5*12 Countersunk Mechanical Screws 12P

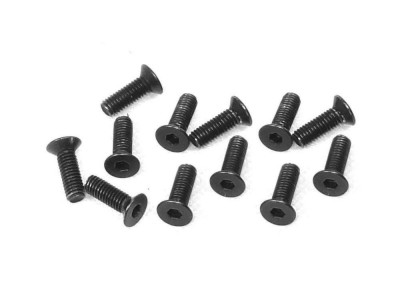

Code : 50089

5*15 Countersunk Mechanical Screws 12P

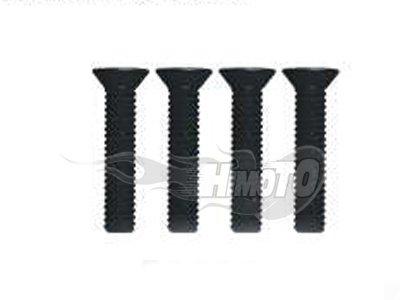

Code : 50090

5*18 Countersunk Mechanical Screws 4P

Code : 50091

5*20 Countersunk Mechanical Screws 8P

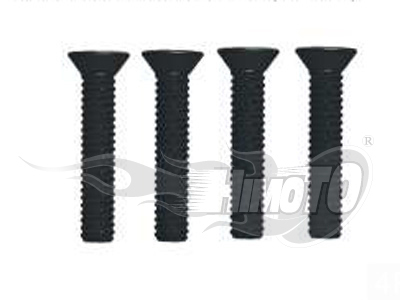

Code : 50092

5*25 Countersunk Mechanical Screws 4P

Code : 50093

3*10 Column Head Hex Self-Tapping Screws 12P

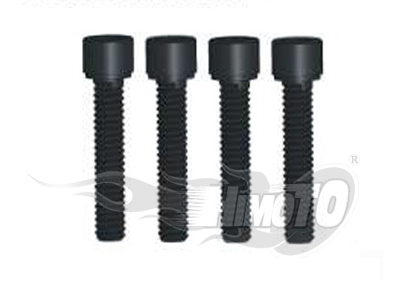

Code : 50095

4*30 Column Head Mechanical Screws 4P

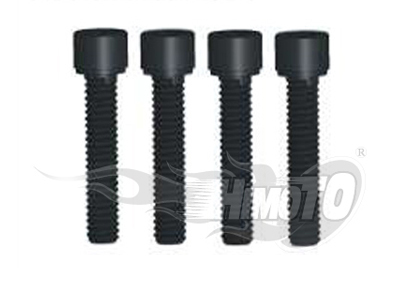

Code : 50096

5*30 Column Head Mechanical Screws 4P

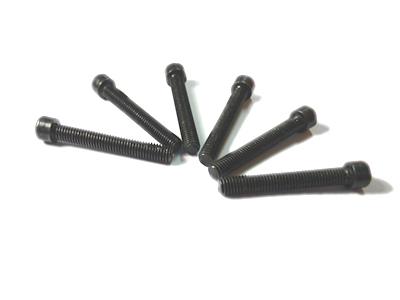

Code : 50097

5*35 Column Head Mechanical Screws 6P

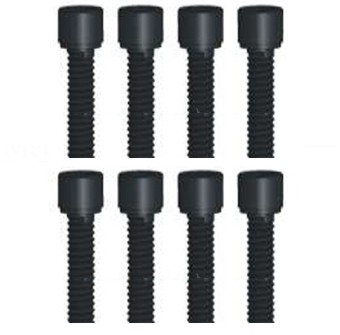

Code : 50098

6*25 Column Head Mechanical Screws 8P

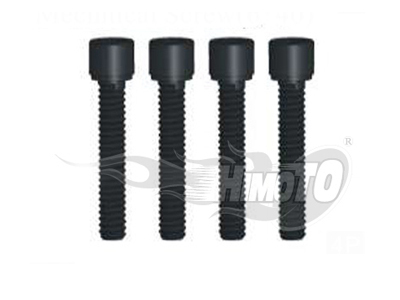

Code : 50099

6*40 Column Head Mechanical Screws 4P

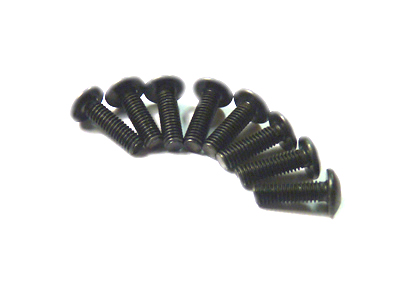

Code : 50100

3*10 Cap Head Mechanical Screws 8P

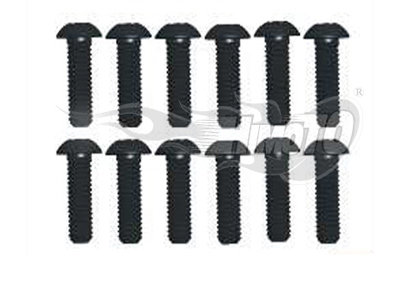

Code : 50101

3*12 Cap Head Mechanical Screws 12P

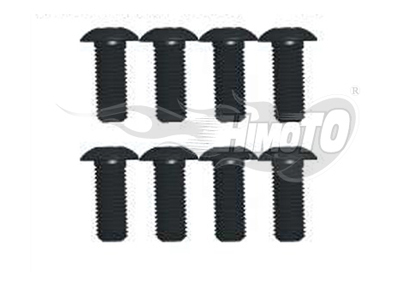

Code : 50103

4*15 Cap Head Mechanical Screws 8P

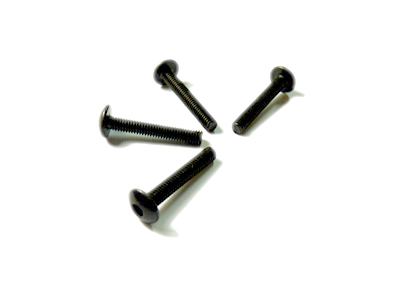

Code : 50104

4*25 Cap Head Mechanical Screws 4P

Code : 50105

4*30 Cap Head Mechanical Screws 4P

Code : 50106

5*15 Cap Head Mechanical Screws 10P

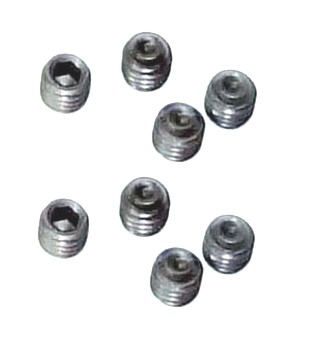

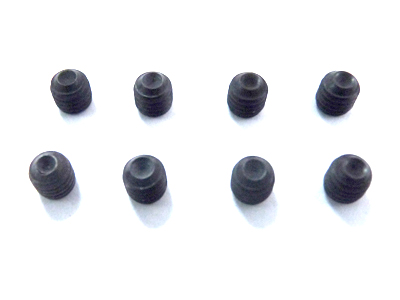

Code : 50107

6*6 Hex Head Grub Screws 8P

Code : 50108

5*5 Hex Head Grub Screws 8P

Code : 50109

4*4 Hex Head Grub Screws 8P

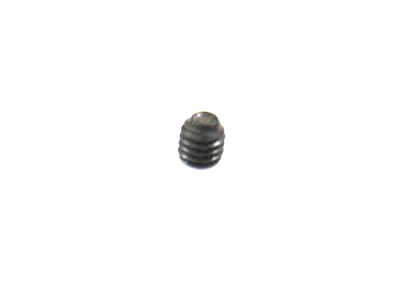

Code : 50110

3*3 Hex Head Grub Screws 8P

Code : 50111

5*10 Hex Head Grub Screws 4P

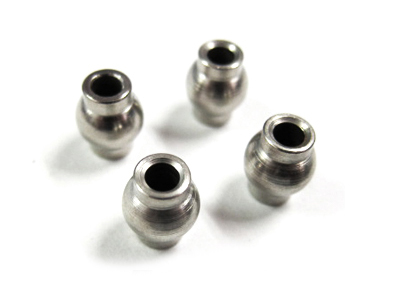

Code : 50112

F10Mm Front Susp Arm Ball 4P

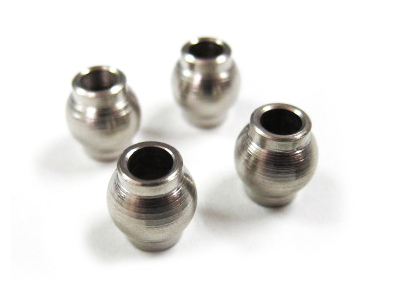

Code : 50113

F11Mm Rear Susp Arm Ball 4P

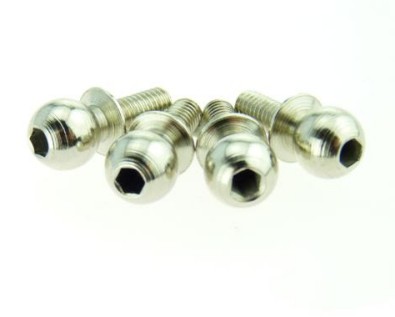

Code : 50114

F8Mm Servo Link Ball 4P

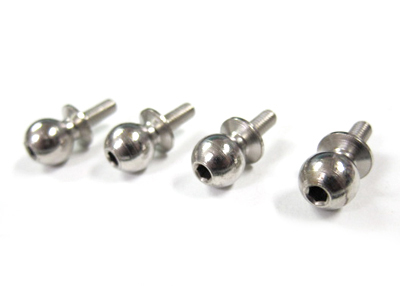

Code : 50115

F10Mm Steering Link Ball 4P

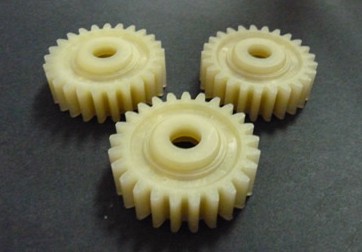

Code : 50116

Diff Gear (25T) 1P

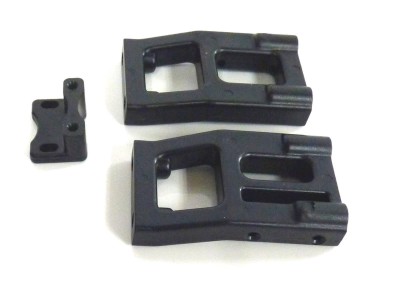

Code : 50117

L/R Servo Mount 2P

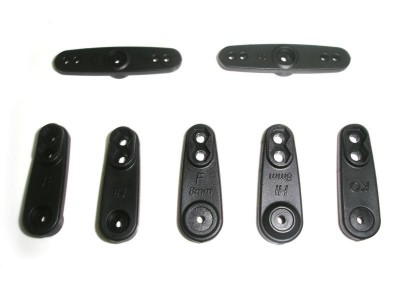

Code : 50118

Servo Horn 1P

Code : 50160

Battery/Receiver Case 1P

Code : 51001

Rear Wheel Rims 2P

Code : 51002

Tires 2PCS

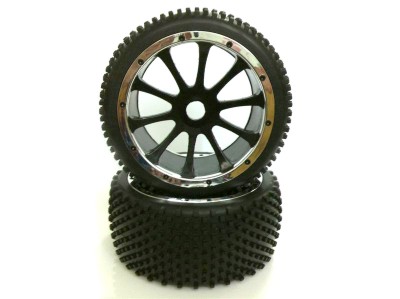

Code : 51003

Rear Rim & Tire Complete 2P

Code : 51006

Front Bumper 1P

Code : 51021

Front Wheel Rims Complete (For 4054) 2P

Code : 51022

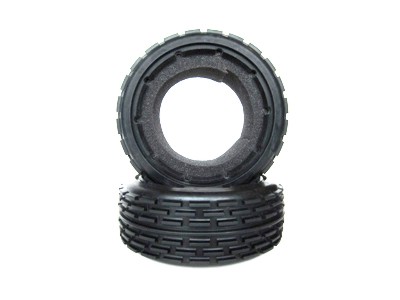

Front Tires (For 4054) 2P

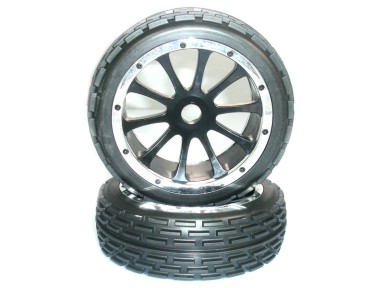

Code : 51023

Front Tire Set (For 4054) 2P

Code : 52027

Gear (24T) 1P

Code : 52028

Gear (26T) 1P

Code : 54001

Chassis 1P

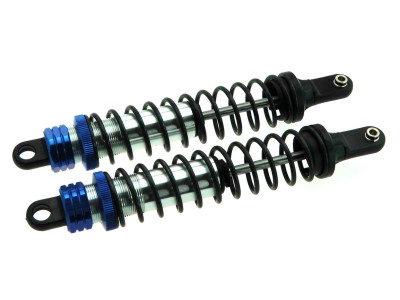

Code : 54002

Front Shock Absorber (Short) 2P

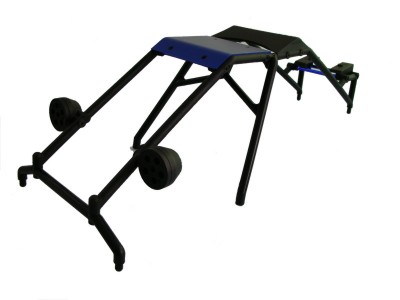

Code : 54004

Roll Cage (Unassemble) 1P

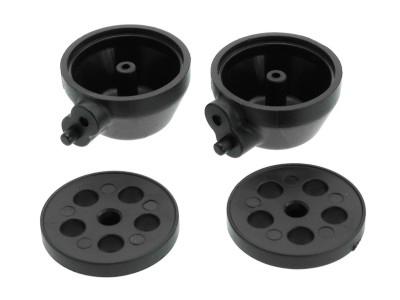

Code : 54005

L/R Roll Cage Light Cover

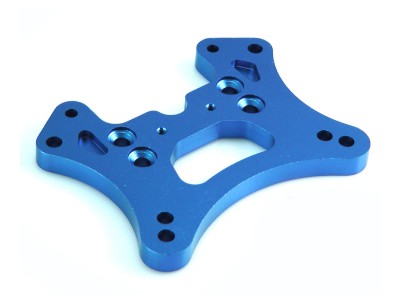

Code : 54006

Front Shock Tower 1P

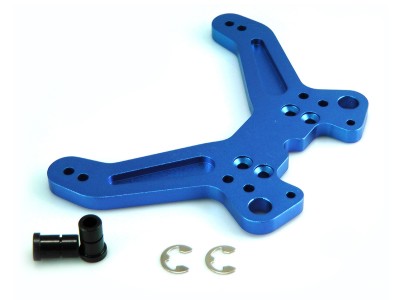

Code : 54007

Rear Shock Tower 1P

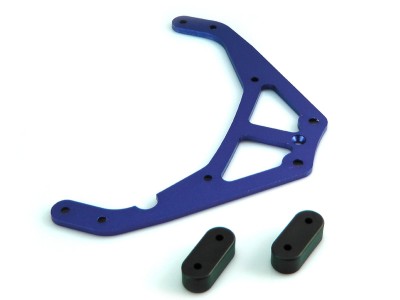

Code : 54008

Front Upper Top Plate/Post 1P

Code : 54008PS

Front Upper Post 2P

Code : 54010

Fuel Tank Post w/E-Clips 4P

Code : 54011

90mm Center Dogbone 1P

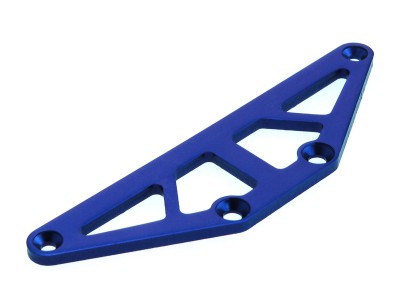

Code : 54012

Rear Reinforcement Plate 1P

Code : 54013

Wing Mount 1P

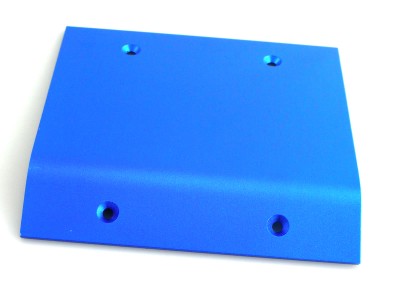

Code : 54014

Top Plate 1P

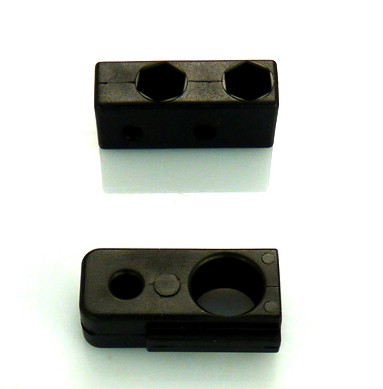

Code : 54015

Brace Post 1SET

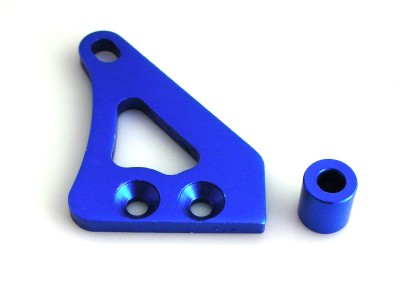

Code : 54016

Brace A 1SET

Code : 54017

Brace B 1P

Code : 54018

Front Wheel Hex/Nuts 1SET

Code : 54019

Servo Horn and Throttle Linkage Set

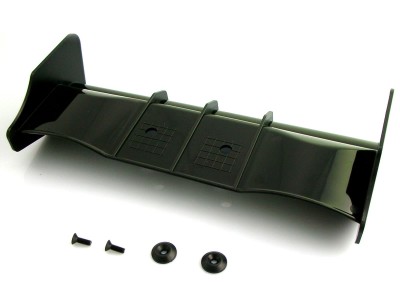

Code : 54020

New Style Wing+Wing Button 1SET

Code : 54020

New Style Wing+Wing Button 1SET

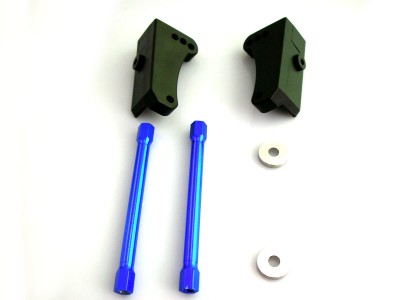

Code : 54021

Side Wing Post w/Wing Stay 2P

Code : 54022

Body Posts 2P

Code : 54023

Diff Joint Cups 2P

Code : 54024

Brake Cam Set

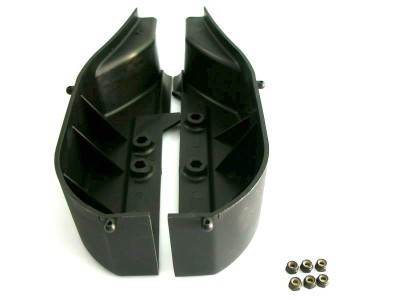

Code : 54025

Side Guards 1SET

Code : 54026

Exhaust Pipe+Silicone Joint Tubing 1SET

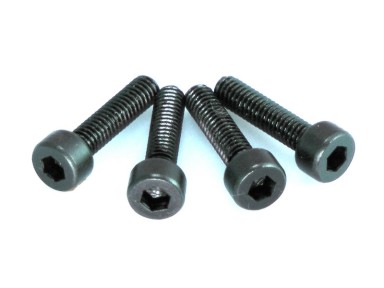

Code : 54027

4*16 Column Head Mechanical Screws 4P

Code : 54028

Front Upper Suspension Arm 2P

Code : 54029

Buffer Post 2P

Code : 54030

Servo Link 1P

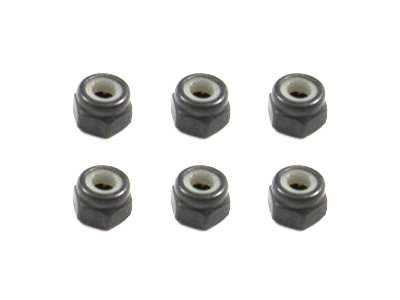

Code : 54031

M3 Nuts 6P

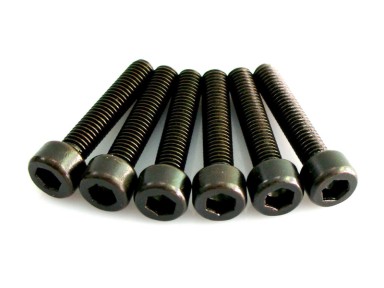

Code : 54032

5*25 Column Head Mechanical Screws 6P

Code : 54036

Steering Mount 1P

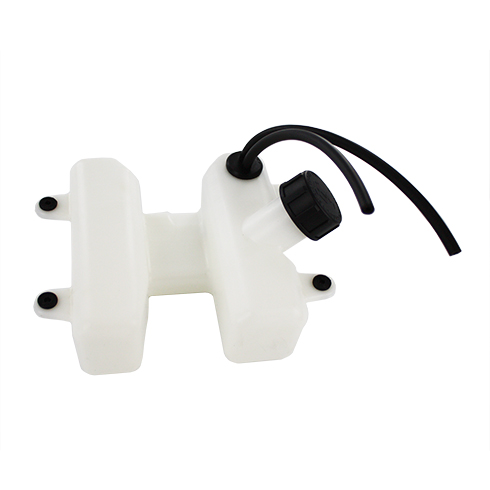

Code : 54037

Fuel Tank 1P

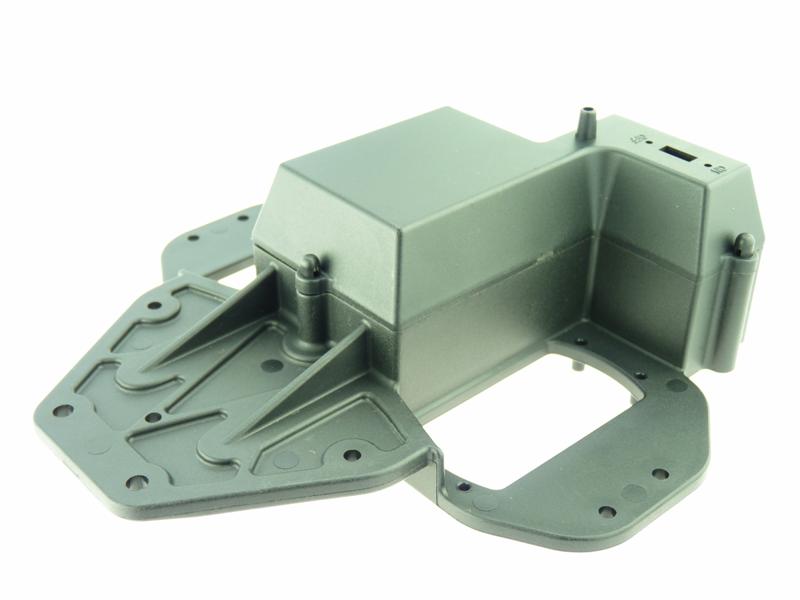

Code : 54038

Receiver Case 1P

Code : 54039

170Mm Center Front Dogbones 1P

Code : 54040

90Mm Center Dogbones 1P

Code : 54070

Servo Saver/Steering Complete 1P

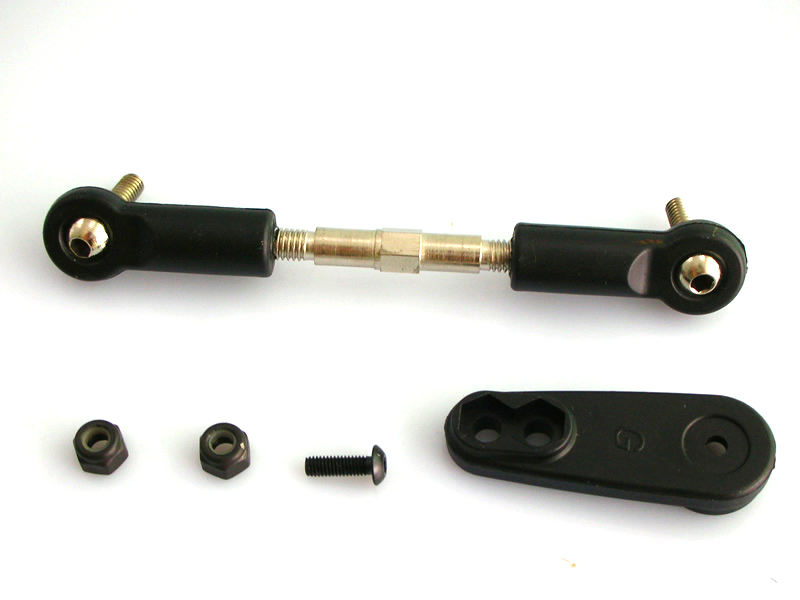

Code : 54080

Servo Link 1P

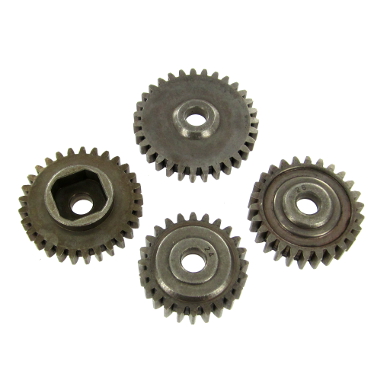

Code : 54090

Optional Powder Steel Gear ( 29T/31T/26T/24T) 1 Set

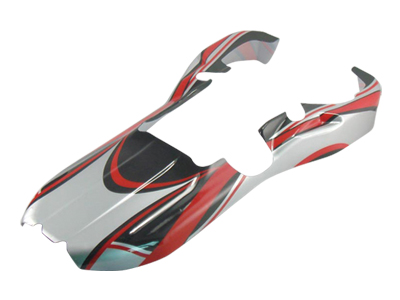

Code : 54905

1:5 SCALE BUGGY BODY

Code : 81013

Body Clips 6P

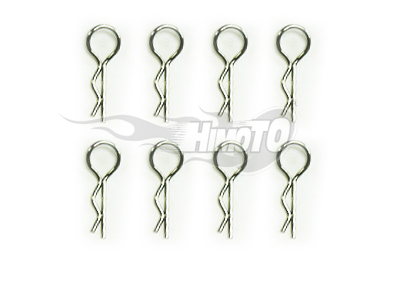

Code : 86090

Fuel Tank Clips 6P

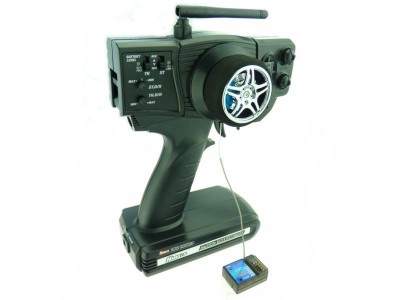

Code : 90301G

Two Button 2.4 Ghz Radio (Tx+Rx)
