Item No Himoto HI4077
  Item Name : Panthera
 OFF Road Buggy Electric Engine
 Product : Car Scale : 1:5 RTR 4WD
 Brushless engine

Himoto MEGAP MXB-5 buggy HI8505

  1. Brushless motor  980KV
  2. Wheel Diameter: 212mm
  3. Length: 750mm
  4. Width: 540mm
  5. Height:320mm
  6. LI-PO Battery (2 x 11,1V  3500MAH)
  7. Wheelbase: 515mm (F/R)
  8. Drive way: upright drive
  9. Chassis: 4mm Aluminum Ground Clearance: 72mm
  10. Net weight: 8.5KG
  11. Drive System: four wheel suspension drivesystem
  12. Diffirential System: CNC process gear
  13. Ground Clearance 42mm
  14. Gear Ratio: 11,18:1
  15. Receiver battery / charger:  LiPo battery
  16. Body: anti-explode, high resistance
  17. Camber Angel:0-8
  18. R/C Control System: 2,4Ghz Transmitter
  19. Out of range protection
  20. Steering Servo: 27KG-cm

 Download Manual        Tilbage til shoppen

　



Se priser på spare parts and upgrade parts her
07102

Front Shock Absorber 2P
07103

Rear Shock Absorber 2P
07104

L/R Front Lower Susp Arm 2P
07105

L/R Rear Lower Susp Arm 2P
07106

Steering Link 2P
07107

Rear Upper Link 2P
07108

Gear Box 1P
07110

Front Shock Tower (Alum 1P, Plastic 1P)
07111

Rear Shock Tower (Alum 1P, Plastic 1P)
07112

L/R Front Upper Susp Arm 2P
07115

Bumper 2P
07116

Front Upper Top Plate
07117

L/R Steering Mount
07118

L/R Diff Mount Set 2P
07119

Body Post (Buggy Only)
07120

L/R Buggy Wing Stay
07121

Steering Rocker
07126

Adjustable Bushes 6P

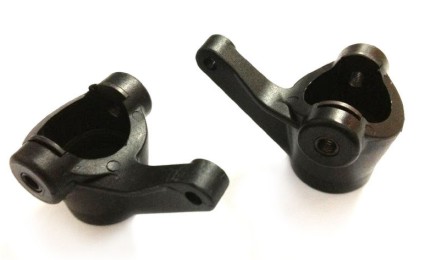

07127

L/R Steering Mount
07130

Front Lower Susp Arm Holder (B)
07131

Rear Lower Susp Arm Holder (C)

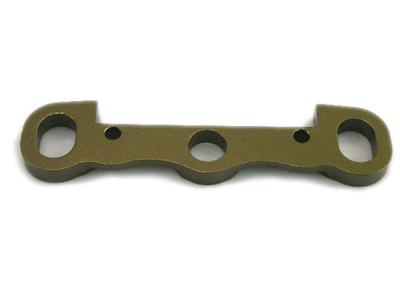

07132

Front Lower Susp Arm Holder (A)
07133

F/R Lower Susp Arm Pins (6*90) 4P
07134

Front Upper Susp Arm Pins (6*60) 2P
07136

Wheel Mount 2P
07139

Front Stabilizer Bar
07140

Rear Stabilizer Bar
07141

Buffer Alum Mount
07142

Buffer Post 2P
07143

Rear Wheel Axle 2P
07144

Universal Drive Joint (130mm) 2P
07145

Diff Joint Cups 2P
07146

Centre Dogbone Joint Cup 2P
07148

Steel Diff Gear (11T)
07150

Alum Steering Ball (13mm) 4P
07151

Alum Front Susp Arm Ball (12mm) 4P
07152

Alum Shock Lower Ball 4P
07153

Alum Shock Upper Ball 4P
07154

High Intensity Wing (Buggy Only)
07155

Tire & Rim Complete (Buggy Only) 2P
07156

Rear Dogbones (135mm) 2P
07159

Bearing (19*10*5) 4P
07168

Countersunk Mechnical Screw 12P

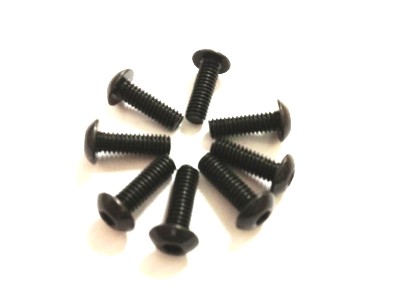

07169

Cap Head Mechnical Screw 8P

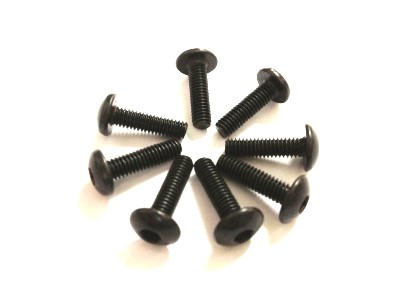

07170

Cap Head Mechnical Screw 8P

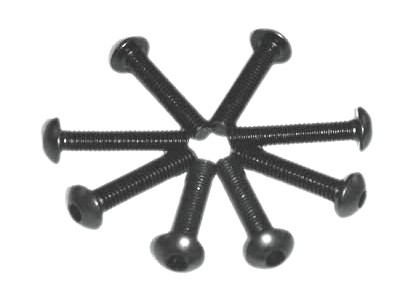

07171

Cap Head Mechnical Screw 8P
07172

Cap Head Mechnical Screw 4P

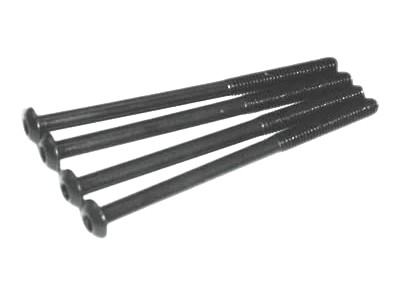

07173

Cap Head Mechnical Screw 4P

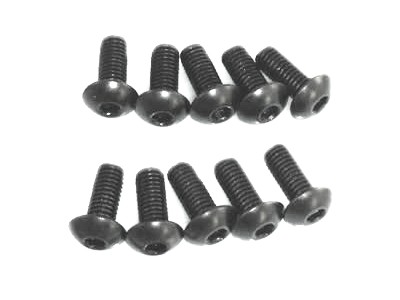

07174

Cap Head Mechnical Screw 10P

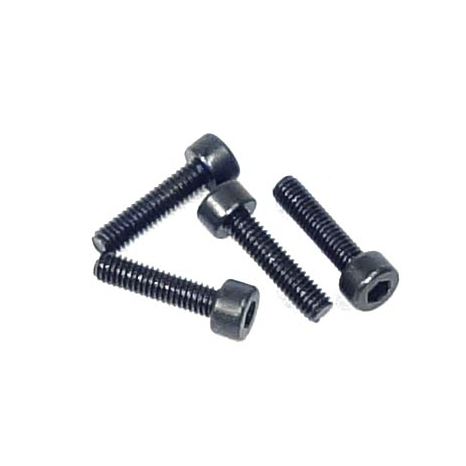

07176

Column Head Hex Self-Tapping Screw 12P

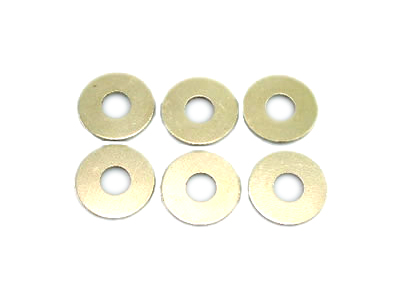

07177

Second Way Gear Washer 6P

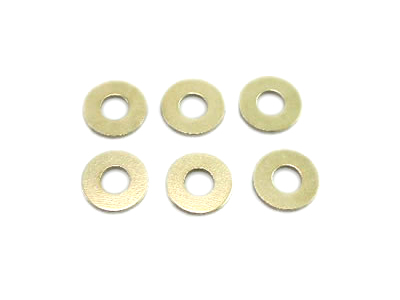

07178

Second Way Gear Washer 6P

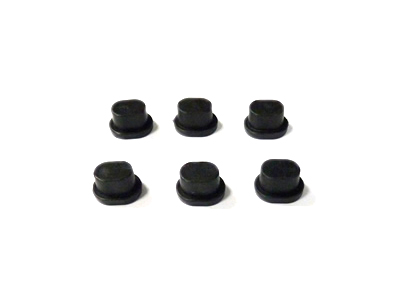

07179

Side Adjustable Bushes 6P

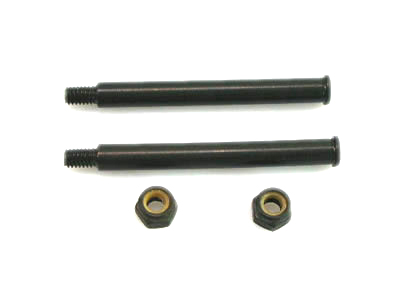

07180

Front Lower Susp Arm Pins 2P

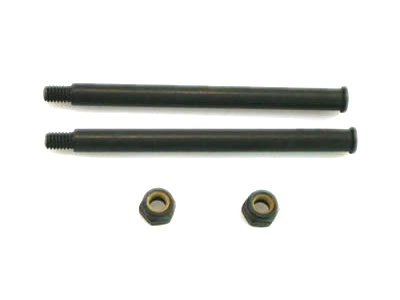

07181

Rear Lower Susp Arm Pins 2P
07182

Countersunk Mechnical Screw 4P
07183

Cap Head Mechnical Screw 4P

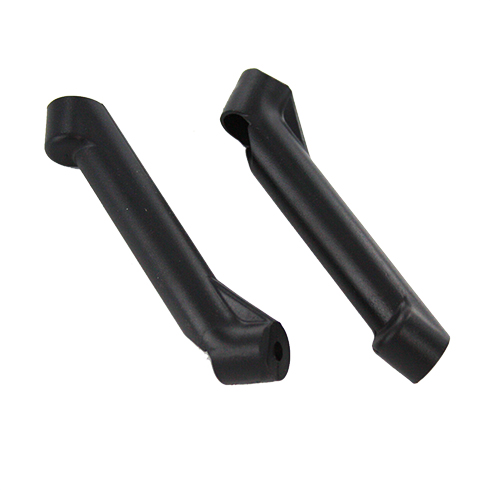

07190

Front Brace Holder (Buggy Only)

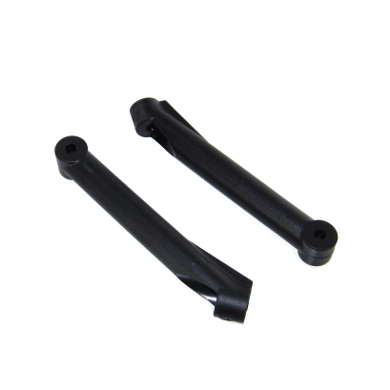

07191

Rear Brace Holder (Buggy Only)

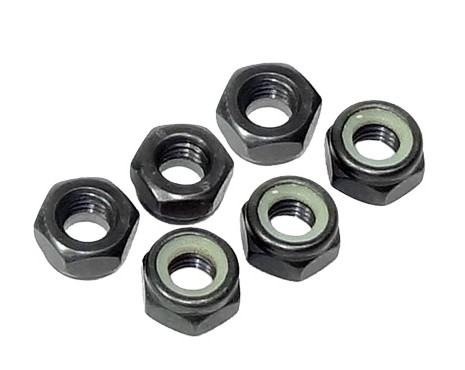

07204

M10 Lock Nut (6pcs)

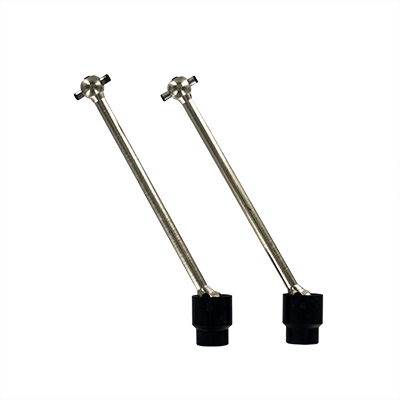

077001

Alum Center Dogbone

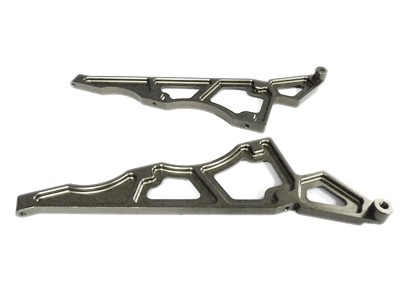

077002

Alum Rear Side Link
077003

Alum Front Brace
077004

Alum Radio Tray

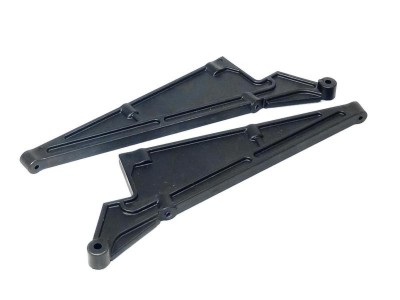

07771

Rear Side Link

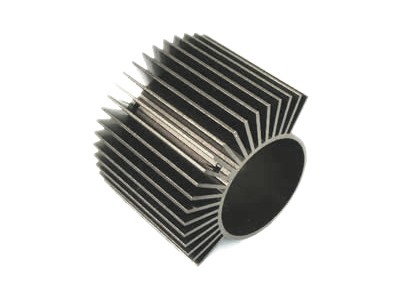

07772

Motor Heat Proof Cover
07773

Battery Case
07774

Rear Dogbones
07775

Front Dogbones
07776

Motor Mount

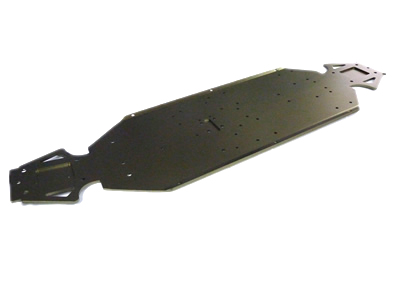

07777

Chassis

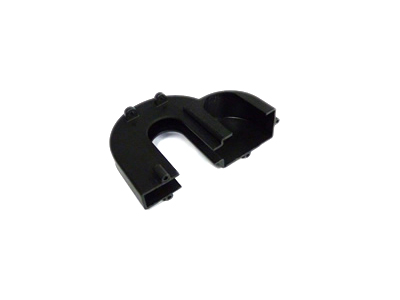

07778

Dust Cover

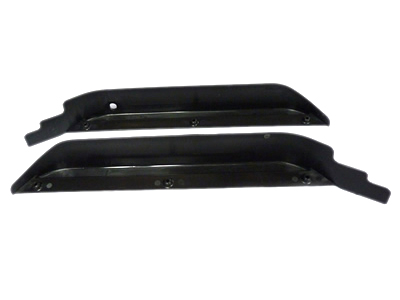

07779

L/R Side Guard

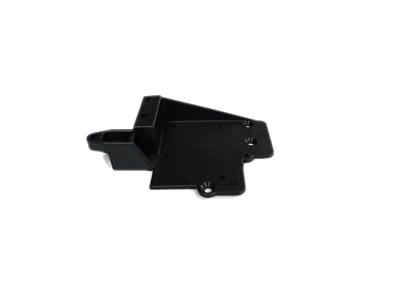

07780

Electric Speed Mount Controller
07781

Radio Tray
07782

Receiver Case
07783

Front Brace

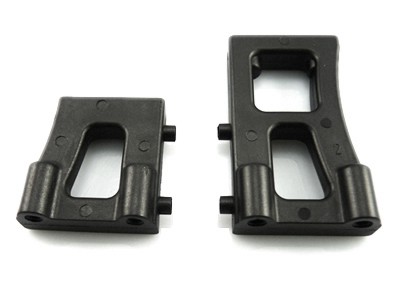

07784

Servo Mount
07785

Centre Diff Mount A
07786

Centre Diff Mount B

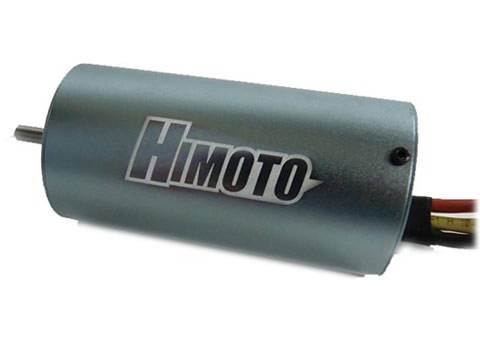

07788

Brushless Motor 980KV

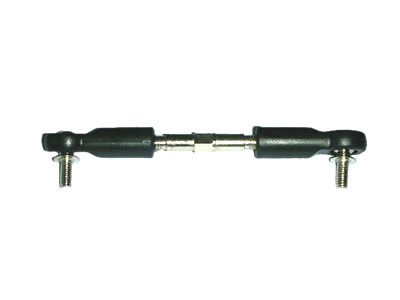

07789

Servo Link
07790

Diff Gear (10T)
07791

Diff Gear (11T)

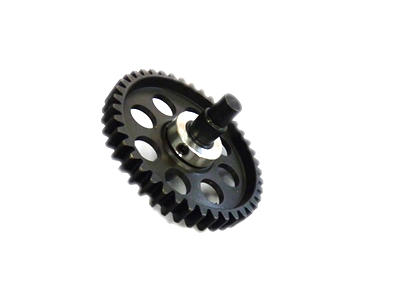

07792

Diff Gear (41T)

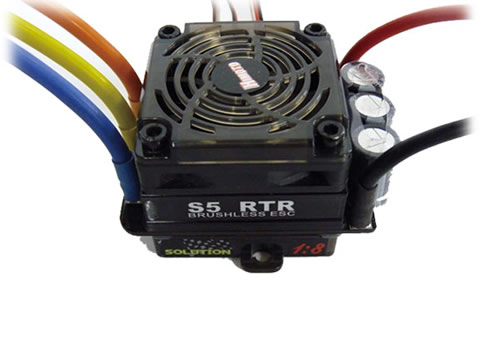

07794

Brushless ESC 150A

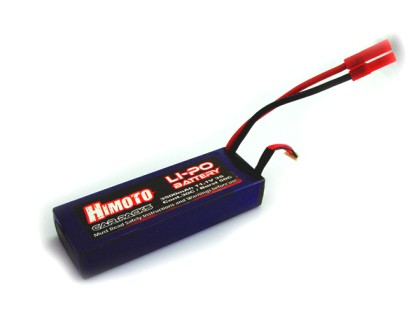

07796

Li-Po Battery (11.1V 3500mAH) w/Banana Plug

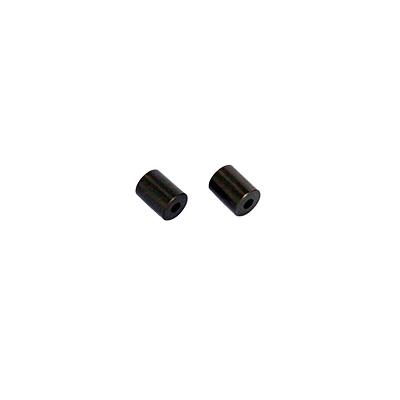

07797

Deck Spacer
07798

Column Head Hex Machine Screw
07799

Column Head Hex Machine Screw

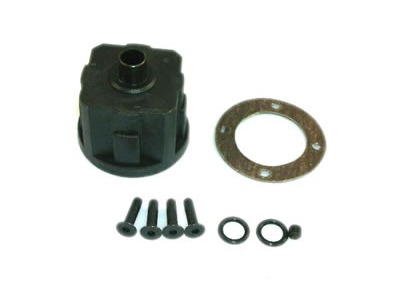

50064

F/R Diff Shell Set

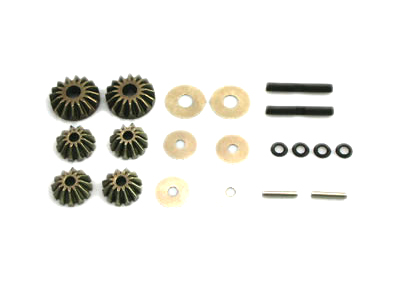

50067

(50067N) F/R Diff Gear Set

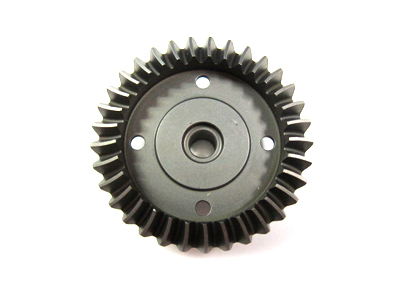

50071

F/R Crown Gear (33T)

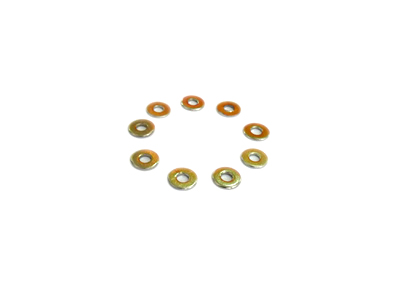

50078

F3*8*0.8Mm Servo Washers 9P
50079

M4 Nuts 8P
50080

M5 Nuts 9P

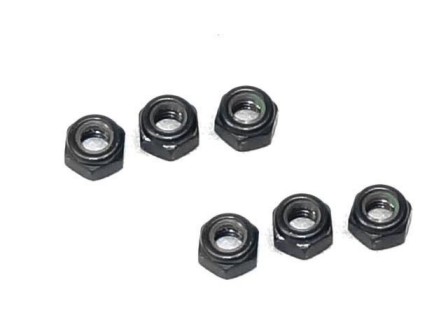

50081

M6 Nuts 6P
50083

3*10 Countersunk Mechanical Screws 4P

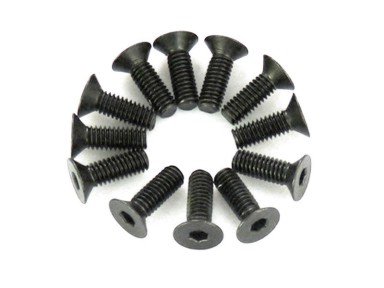

50084

4*12 Countersunk Mechanical Screws 12P

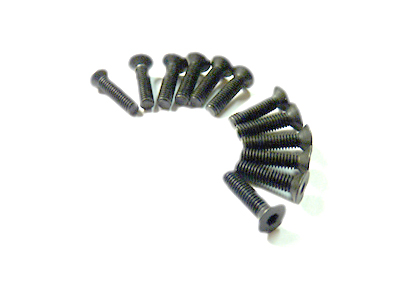

50085

4*16 Countersunk Mechanical Screws 12P

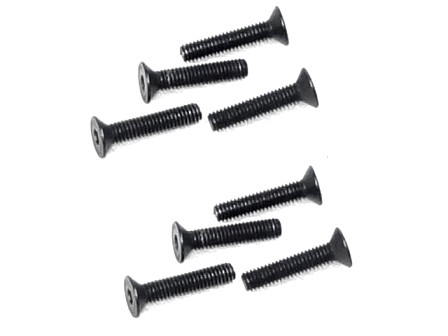

50086

4*20 Countersunk Mechanical Screws 8P

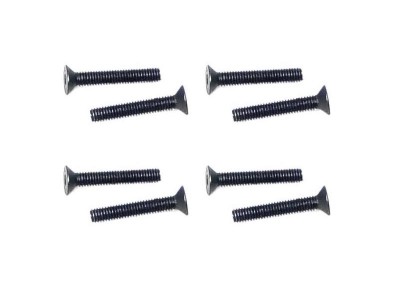

50087

4*25 Countersunk Mechanical Screws 8P

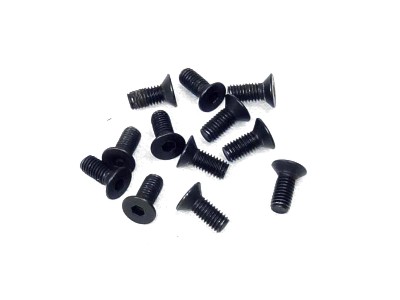

50088

5*12 Countersunk Mechanical Screws 12P

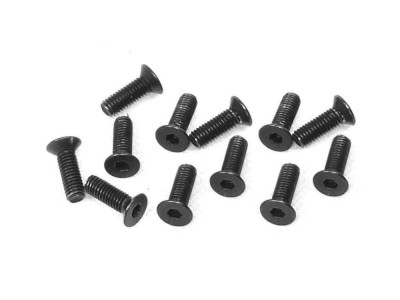

50089

5*15 Countersunk Mechanical Screws 12P
50100

3*10 Cap Head Mechanical Screws 8P
50104

4*25 Cap Head Mechanical Screws 4P
50105

4*30 Cap Head Mechanical Screws 4P
50106

5*15 Cap Head Mechanical Screws 10P
50107

6*6 Hex Head Grub Screws 8P
50108

5*5 Hex Head Grub Screws 8P
50109

4*4 Hex Head Grub Screws 8P
50111

5*10 Hex Head Grub Screws 4P
50114

F8Mm Servo Link Ball 4P

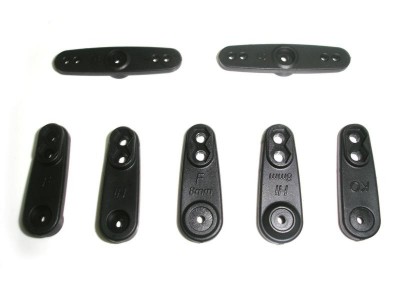

50118

Servo Horn 1P

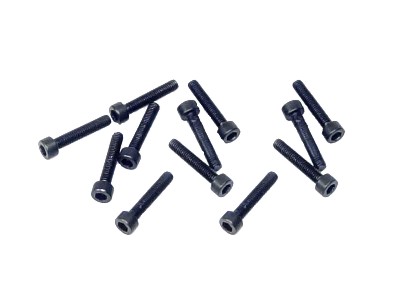

50202

3*16 Column Head Hex Self-Tapping Screws 12P

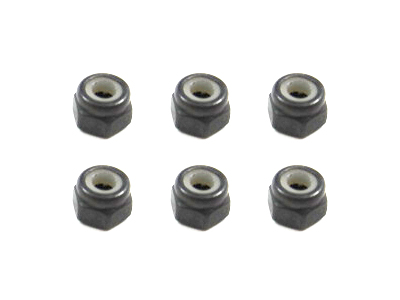

54031

M3 Nuts 6P
81013

Body Clips 6P
HTX-RX

4channels 2.4G Receiver 1P

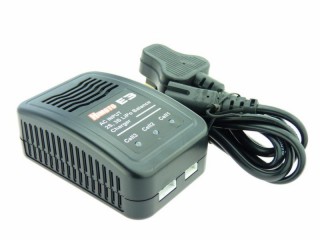

E3EU

E3 2S, 3S LiPo Balance Charger AC Input (Europe Standard)
HTX-242

Two Button 2.4 Ghz Radio Set
