Program box til Hobbywing EZRUN and XERUN ESCs.
Hobbywing 3 in 1 professional program box for Hobbywing EZRUN and XERUN ESCs.
To fully unleash the power of Hobbywing ESC, this Program Box is a must-have. You can
quickly access option menu in the ESC and make the best setup like Start-up mode, brake
force, no. of battery cells, etc. If you want to do it the “Hi-Tech” way, you can connect the
ESC to this Program Box, then use the USB cable to connect the Program Card to your PC,
with the CD-ROM that came with the Program Box, you can view detail info and adjust
ESC settings just like a real engineer in a “Pro Team”, looks fancy and very efficient.
1 Working Modes
1.1 Works as an individual device to set the ESC, the value of each parameter is displayed
on the LCD screen.
1.2 Works as an USB adapter to link the ESC with a PC to update the firmware of the ESC
or set the ESC by HOBBYWING USB LINK SOFTWARE .
1.3 Works as a Lipo battery voltmeter to measure the voltage of the whole battery pack or
2.1 Size: 90mm (L) * 51mm (W) * 17mm (H)
2.2 Weight: 65g
2.3 Input Voltage: 4.5-12.6V
(If the ESC hasn’t a built-in BEC, you must use an additional battery pack to supply the program box)
2.4 Displayer: 16*2 characters LCD.
2.5 Interface: Mini USB interface, ESC interface (Futaba plug), Power supply interface (Futaba plug)
3 Compared with the “2 in 1 Professional LCD Program Box”
Models of LCD program boxes:
2 in 1 Professional LCD program box (Already stopped)

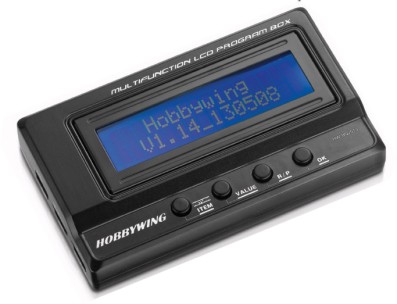

Multifunction LCD program box: It is the new version, it uses MCU (microprocessor) with larger
memory size, and it also has a new function to work as Lipo battery voltmeter to measure the
voltage of the whole battery pack and each cell.
