Midland Alan 42 DS Hånd WT

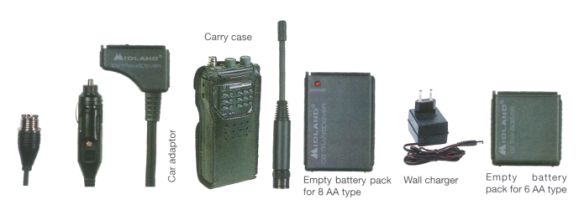

Til Alan 42 medfølger der 2 batteribokse, en til almindelige batterier ( 6 styk ) og en til genopladelige batterier ( 8 styk ). Batterier medfølger ikke ved køb

Manual

Technical specifications
Channels ...................................................... 40 FM (see the Frequency band chart)
Frequency Range* ..................................................................... 26.965 - 27.405 MHz
Operating mode ....................................................................... F3E (FM), A3E (AM).
Antenna impedance ....................................................................................... 50 Ohm.
Loudspeaker............................................................................................ 8 Ohm 0.5W.
Microphone .......................................................................................... condenser type
Power supply.............................................. min 7.2Vdc / max 13,8Vdc / nom 12,6Vdc
Dimensions .......................................................................................... 30x70x140 mm.
Weight ................................................................................ 220 gr. (without batteries).
RECEIVER
Sensitivity at 10dB S/N ..................................,,,,................. 0.5μV (AM), 0.25μV (FM)
Selectivity ............................................................................................. more than 60dB
Squelch range ...................................................,,...................................... 0.25V-500μV
Audio output power ......................................................... 0.5W 8 ohm (10% distortion)
Distortion at 1000 μV ............................................................................................... 3%
Audio frequency response ......................................................................... 400-2400 Hz
Intermediate frequency........................................................................... I° 10.695 MHz
..................................................................................................................... II° 455 KHz
Spurious response ............................................................................... more than 60 dB
Current drain at stanby .......................................... 100 mA when the save mode is off
.................................................................................... 45 mA when the save mode is on
TRANSMITTER
RF Output Power ............................................................. duty cycle 10% 4W AM/FM
Frequency Tolerance ......................................................................................... 0.005%
Harmonic Suppression ........................................................................ more than 70 dB
Current Drain .................................................................................................... 900 mA
Modulation............................................................................................ AM 90% (± 5%)
............................................................................................................... FM dev. 2.0KHz
