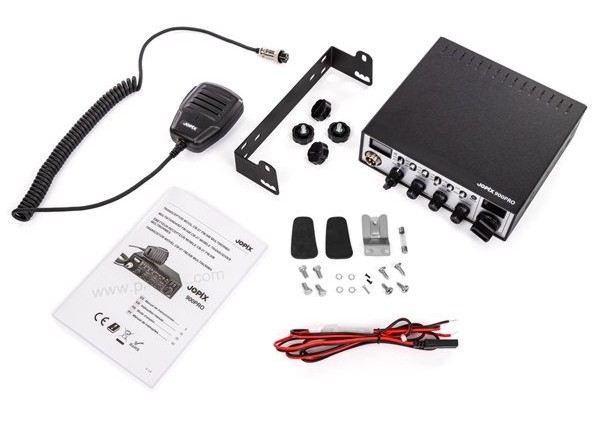

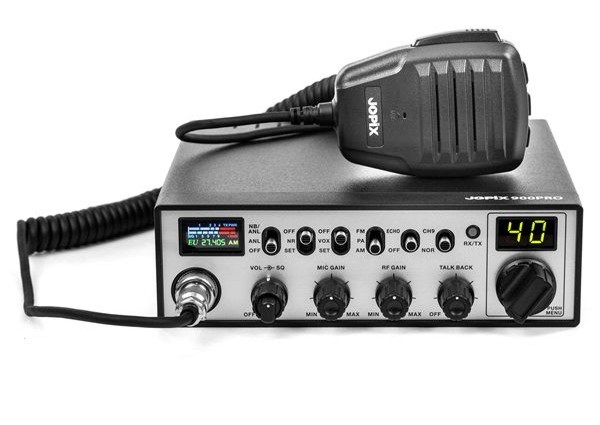

Jopix 900Pro Walkie Talkie

40 kanaler AM / FM     24 / 12 volt

Manual

GENERAL:
• Frequency range: 26.965 – 27.405 MHz (AM/FM) (According to multi-standard mode), 26.565 – 27.99125 MHz
• Number of channels: Up to 80 channels (According to multi-standard mode)
• Digital SWR meter on color LCD display
• Input impedance: 50 Ω
• Modulation mode: AM/FM
• Frequency tolerance: ±5.0 ppm
• Power supply: 12/24 VDC
• Dimensions: 210 (length) x 185 (width) x 56 (height) mm
• Weight: 1.02 kg
• Operating temperature ranges: -20° to +50°C
• Consumption: Transmission: 3 A (maximum) and reception: 0.3 A (muted)

TRANSMITTER
• RF output power: 4 Watt (FM/AM)
• Spurious emissions: ≤4 nW
• Frequency response: 300 – 3000 Hz
• Distortion: ≤5 %
• Frequency error: ±0.6 kHz
• Maximum deviation: ±2 kHz
•Adjacent channel power: ≤20 µW

RECEIVER
• Sensitivity: ≤ 1 µV
• Image frequency rejection: 70 dB
• Adjacent channel rejection: 60 dB
• Intermediate frequencies: 10.7 MHz (1st IF) / 455 Hz 2nd IF)
• Automatic Gain Control (AGC): Less than 10 dB change in audio/output for inputs from 10 to 50000 µV
• Squelch: < 1 µV
• Audio output power: 2 W @ 8 Ω (< 10% distortion)
• Frequency response: 300 – 3000 Hz
