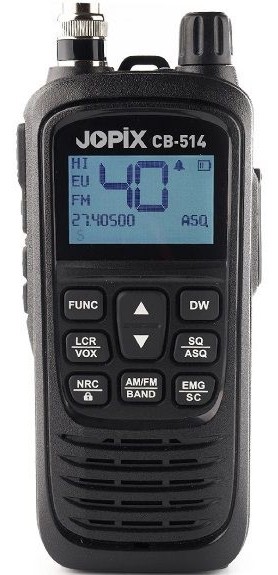

Jopix CB-514 hånd Walkie Talkie

Monofon til radioen   Security Headset til radioen

Manual

MAIN FEATURES

• 40 Channels european multinorm
• Frequencies: 26.965 MHz a 27.405 MHz
• AM/FM Mode
• Large display LCD (4 layouts)
• Speaker audio power 1W
• Menu functions
• NRC (Advanced Noise Reduction Circuit)
• VOX (Hands-free communications)
• Maximum emision power 4 W (High/Low power selection )
• 12 VDC input (via optional adapter) or 5 VDC by USB-C (with adaptader included)

SPECIFICATIONS

• Frequency range 26.565 – 27.405 MHzDC
• Power input: 7.4V±0.4V (Li-Ion Battery)
• USB Charge input 5v DC @ 1000mA
• Mains Adaptor voltage 230v AC
• Battery: 1800mAh capacity
• Size 54 (W) x 150 (H) x 35 (D) mm (without antenna)
• Weight 325 g (without antenna) 650 g (Including antenna, battery, box and accessories)
• Dimensions: 150 x 54 x 35 mm (without antenna)
• Operating temperature -20°- +60° Celsuis

Receiver

• Audio output 1W at 8 ohm
• Sensitivity better than 0.25uv@12db
• Frequency Response 300-3000Hz
• First IF frequency 10.7MHz
• Second IF frequency 450KHz

Transmitter

• Frequency error ±300Hz
• Maximum RF power 4W
• Spurious transmissions < 4nW (-54 dBm)
• Adjacent channel rejection 60dB
• Modulation 80% to 90% (AM)
• Deviation 1.7KHz – 2.0 KHz (FM)
• Impedance 50 ohm unbalanced
• Current drain 1.3A Max

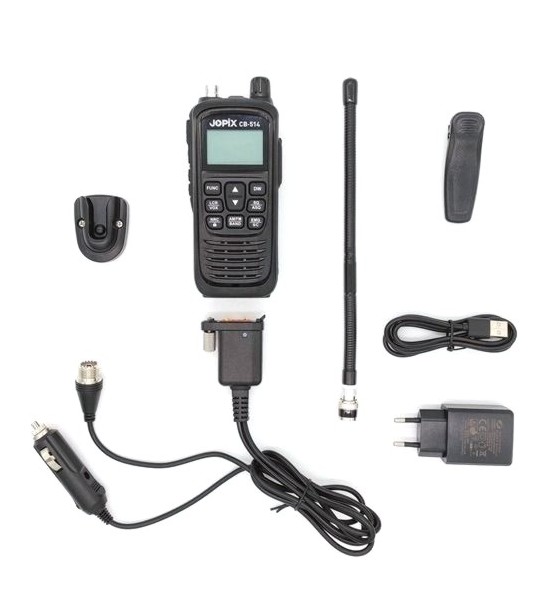

CONTENT

• CB Radio
• BNC Handheld Antenna
• Car Kit:
  • 12V plug car
  • external antenna connection (PL connector)
• Cap for the antenna
• USB-C Charging Cable
• USB Power Adapter
• 1800mA Li-ion Battery
• Belt Clip
• Mounting Stud
• User Manual in: Spanish, English, French, German
