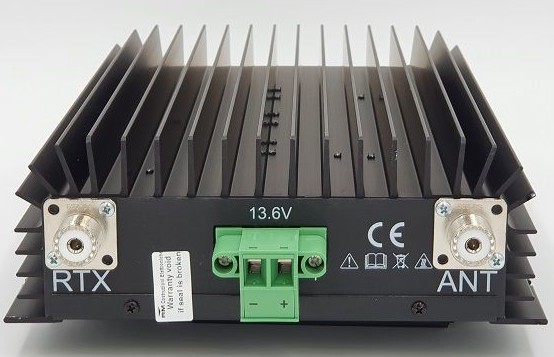

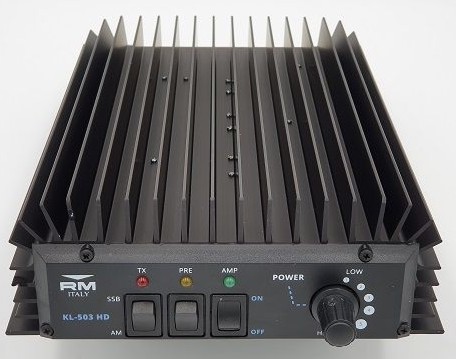

RM KL 503HD  PA trin til 27 Mhz 1-35W input  300W output

  Manual

FEATURES, FUNCTIONS AND SPECIFICATIONS:
• Operation Frequency: 25-30 MHz (10m Amateur HF Band)
• Modulation Types: SSB, CW, AM, FM, data etc (All narrowband modes)
• Transistor: 8x RM3 Mosfet + 1x RM4 Mosfet Driver
• Max I/P Current: 30 Ampere
• Power Supply: 13 VDC +/- 1V 40A
• Input Fuse (Internal): 3x 10 Ampere (5x20 mm Fast)
• Input RF Power: 1-35 Watt max (All modes)
• Output RF Power: 300 Watt max
• Maximum bypass power (Amplifier off): 50 Watt max
• Input VSWR: 1.1 – 1.5:1
• Output VSWR Maximum: 2.5:1
• Harmonic Ouput: >-50dBc 25-30 MHz
