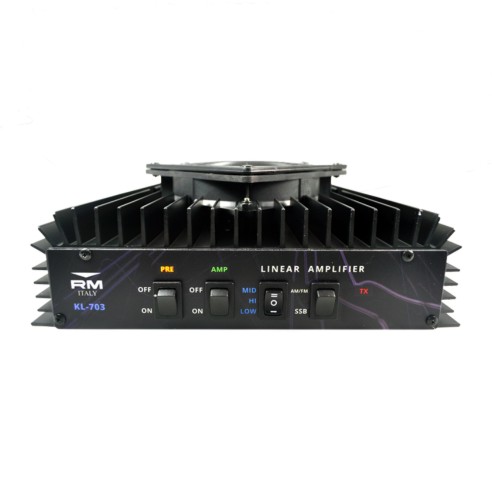

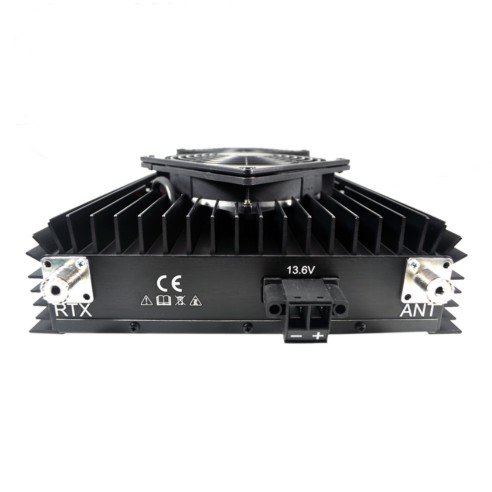

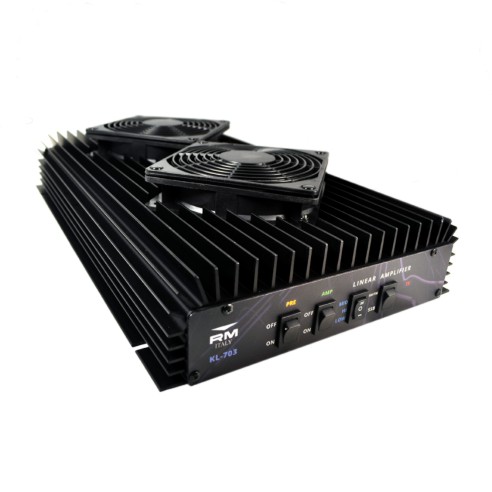

RM KL 703  PA trin til 27 Mhz 1-35W input  500W output

Manual

FEATURES, FUNCTIONS AND SPECIFICATIONS:
Specifications:
• Operation Frequency: 25 - 30 MHz (10m Amateur HF Band)
• Modulation Types: SSB,CW,AM, FM, data etc (All narrowband modes)
• Transistor: 16x RM 3 MOSFET
• Max I/P Current: 50A
• Power Supply: 13.8VDC+/- 1V 60A
• Input Fuse (Internal): 4x15A (Auto Fuse)
• Input RF Power: 1-35 Watt max (All modes)
• Output RF Power: 500 Watt max
• Maximum bypass power (Amplifier off): 50 Watt max
• Input VSWR: 1.1—1.5:1
• Output VSWR Maximum: 2.5:1
• Harmonic Output: >-50dBc 25-30 MHz
